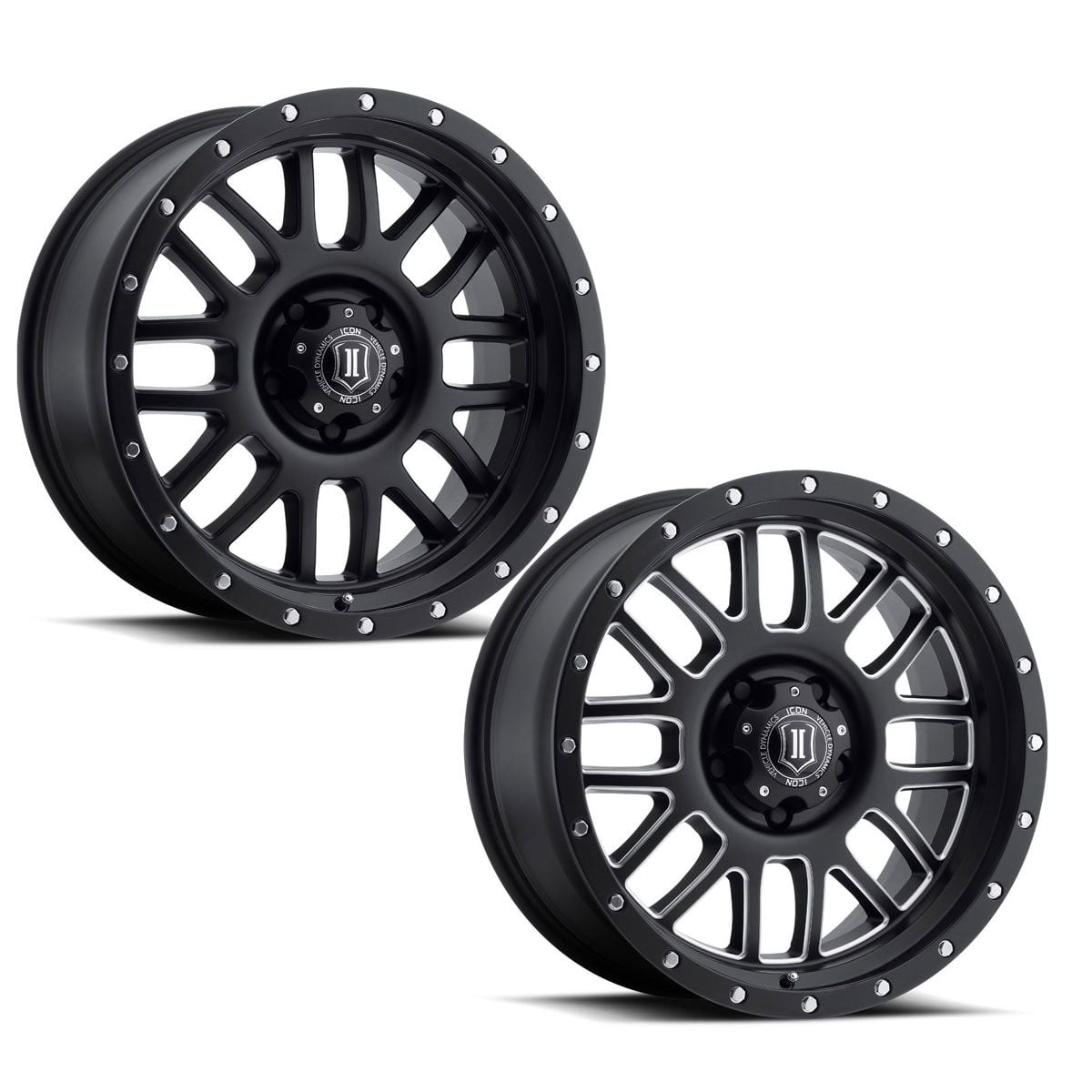

ICON Alloys 20" Alpha Series Wheel
A potent blend of on-road looks and off-road capability, the ALPHA is aimed to increase both the form and function of your Jeep, truck, or SUV. Staying true to the ICON Alloys approach, the ALPHA has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace dimensions and wheel offset have been strategically developed to reduce scrub radius, improving all-around handling and ride quality and making a set of these wheels the perfect complement to an ICON suspension system.
Wheel Fitment Guide (How to: Measure Wheels & Identify Lug Patterns)
A potent blend of on-road looks and off-road capability, the ALPHA is aimed to increase both the form and function of your Jeep, truck, or SUV. Staying true to the ICON Alloys approach, the ALPHA has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace dimensions and wheel offset have been strategically developed to reduce scrub radius, improving all-around handling and ride quality and making a set of these wheels the perfect complement to an ICON suspension system.
- Application-specific dimensions optimize vehicle dynamics and tire clearance
- Reduced unsprung weight and rotating mass improves on and off-road vehicle performance
- Aluminum alloy construction provides strength properties that are well suited for off-road use
| Part # | Size | Finish | Bolt Pattern | Backspace | Offset | Hub Bore | Load Rating | Packaged Weight |
|---|---|---|---|---|---|---|---|---|
| IVD-1220905556SB | 20 x 9 | Satin Black | 5 x 150 | 5.625" | 16mm | 110.1mm | 2500 LBS | 38 Lbs |
| IVD-1220905556SBMW | 20 x 9 | Satin Black / Milled Windows | 5 x 150 | 5.625" | 16mm | 110.1mm | 2500 LBS | 38 Lbs |
| IVD-1220906356SBMW | 20 x 9 | Satin Black / Milled Windows | 6 x 135 | 5.625" | 16mm | 81.1mm | 2500 LBS | 38 Lbs |
| IVD-1220908955SB | 20 x 9 | Satin Black | 8 x 180 | 5" | 12mm | 125.2mm | 3700 LBS | 38 Lbs |
| IVD-1220908955SBMW | 20 x 9 | Satin Black / Milled Windows | 8 x 180 | 5" | 12mm | 125.2mm | 3700 LBS | 38 Lbs |
| IVD-1220908057SB | 20 x 9 | Satin Black | 8 x 6.5" | 5.75" | 19mm | 125.2mm | 3700 LBS | 38 Lbs |
| IVD-1220908057SBMW | 20 x 9 | Satin Black / Milled Windows | 8 x 6.5" | 5.75" | 19mm | 125.2mm | 3700 LBS | 38 Lbs |
| IVD-1220908150SB | 20 x 9 | Satin Black | 8x 170 | 5" | 0mm | 125.2mm | 3700 LBS | 38 Lbs |
| IVD-1220905556GBMW | 20 x 9 | Gloss Black / Milled Windows | 5 x 150 | 5.625" | 16mm | 110.1mm | 2500 LBS | 38 Lbs |
| IVD-1220905556GM | 20 x 9 | Gun Metal | 5 x 150 | 5.625" | 16mm | 110.1mm | 2500 LBS | 38 Lbs |
| IVD-1220906356GBMW | 20 x 9 | Gloss Black / Milled Windows | 6 x 135 | 5.625" | 16mm | 87.1mm | 2500 LBS | 38 Lbs |
| IVD-1220906356GM | 20 x 9 | Gun Metal | 6 x 135 | 5.625" | 16mm | 87.1mm | 2500 LBS | 38 Lbs |
| IVD-1220908057GBMW | 20 x 9 | Gloss Black / Milled Windows | 8 x 6.5" | 5.725" | 19mm | 125.2mm | 3700 LBS | 38 Lbs |
| IVD-1220908057GM | 20 x 9 | Gun Metal | 8 x 6.5" | 5.725" | 19mm | 125.2mm | 3700 LBS | 38 Lbs |
| IVD-1220908150GBMW | 20 x 9 | Gloss Black / Milled Windows | 8 x 170 | 5" | 0 | 125.2mm | 3700 LBS | 38 Lbs |
| IVD-1220908150GM | 20 x 9 | Gun Metal | 8 x 170 | 5" | 0 | 125.2mm | 3700 LBS | 38 Lbs |
| IVD-1220908955GBMW | 20 x 9 | Gloss Black / Milled Windows | 8 x 180 | 5.5" | 12mm | 125.2mm | 3700 LBS | 38 Lbs |
| IVD-1220908955GM | 20 x 9 | Gun Metal | 8 x 180 | 5.5" | 12mm | 125.2mm | 3700 LBS | 38 Lbs |
