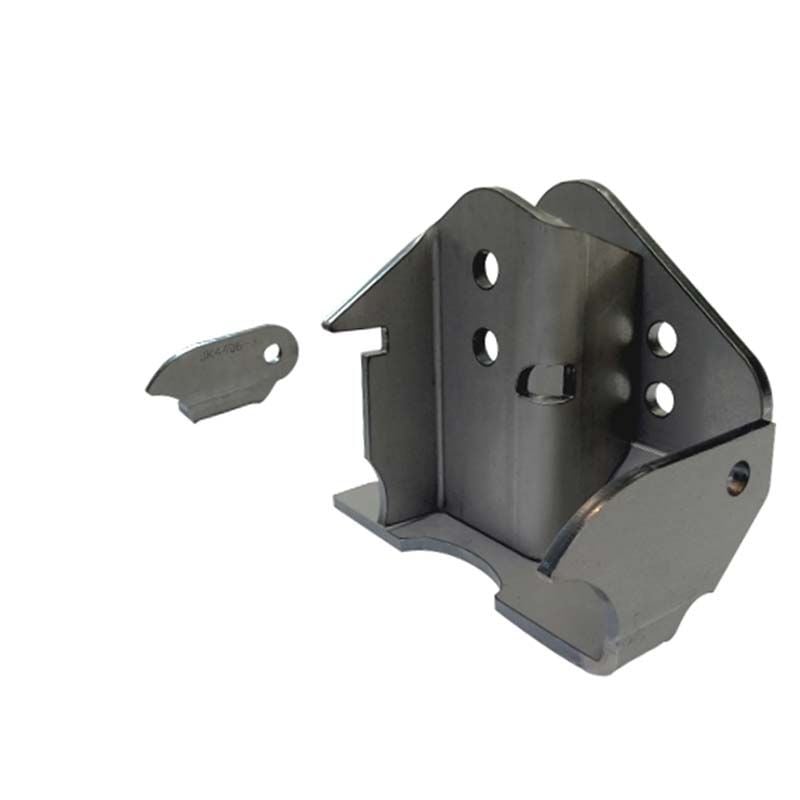

Artec Industries JK Trackbar Bracket
This heavy JK trackbar bracket is designed to take serious abuse and replace your front 30 or 44 JK factory trackbar bracket. The 1/4" thick precision cut and formed components of this setup out perform the competition.
| Part # | Description | Type |
|---|---|---|
| ART-JK4406 | Artec Industries JK Heavy Duty Trackbar Bracket | Raised |
| ART-JK4407 | Artec Industries JK Heavy Duty Trackbar Bracket | Stock |
| ART-JK4452 | Artec Industries JK APEX Trackbar Bracket | Raised |
| ART-JK4453 | Artec Industries JK APEX Trackbar Bracket | Stock |
ART-JK4406
JK Heavy duty Trackbar Bracket This heavy bracket is designed to take serious abuse and replace your front 30 or 44 JK factory trackbar bracket. The 1/4" thick precision cut and formed components of this setup out perform the competition. NOTE: This bracket offers raised trackbar holes at 1.75" and 3.0". THIS BRACKET IS FOR USE WITH A DRAG LINK FLIP (WHICH REQUIRES A NEW TRACKBAR, MINIMUM 3" LIFT and BUMPSTOP EXTENSIONS). This bracket has nothing to do with your lift amount.
Upgrade your vehicle’s off-roading capabilities with Artec Industries’ Heavy-Duty Rear Trackbar Bracket. Built to withstand serious abuse, this bracket replaces your worn factory bracket and offers superior performance with ¼" thick precision cut components. With raised trackbar holes for multiple lift styles, this bracket also adjusts the roll center higher for greater stability and improves ground clearance over factory brackets. Don’t settle for subpar equipment. Choose Artec Industries for the ultimate off-roading experience.
Features:
- 1/4" steel
- CNC laser cut and CNC bent for precise fit
- Engineered using 3D scan files
- Replaces factory bracket
- Engineered for lifts 3” or higher
- Raises roll center for increased stability
- Improved ground clearance
- Made in the USA
Notes:
- This bracket offers raised trackbar holes at 1.75" and 3.0". THIS BRACKET IS FOR USE WITH A DRAG LINK FLIP (WHICH REQUIRES A NEW TRACKBAR, MINIMUM 3" LIFT and BUMPSTOP EXTENSIONS). This bracket has nothing to do with your lift amount.
- This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.
ART-JK4407
JK Heavy duty Stock Trackbar Bracket This heavy bracket is designed to take serious abuse and replace your front 30 or 44 JK factory trackbar bracket. The 1/4" thick precision cut and formed components of this setup out perform the competition. NOTE: If your lift replaces your trackbar and mounts to the factory axle bracket (typical with an lift that includes an adjustable trackbar), choose this BRACKET.
Upgrade your vehicle’s off-roading capabilities with Artec Industries’ Heavy-Duty Rear Trackbar Bracket. Built to withstand serious abuse, this bracket replaces your worn factory bracket and offers superior performance with ¼" thick precision cut components. With raised trackbar holes for multiple lift styles, this bracket also adjusts the roll center higher for greater stability and improves ground clearance over factory brackets. Don’t settle for subpar equipment. Choose Artec Industries for the ultimate off-roading experience.
Features:
- 1/4" steel
- CNC laser cut and CNC bent for precise fit
- Engineered using 3D scan files
- Replaces factory bracket
- Improved ground clearance
- Made in the USA
Notes:
- If your lift replaces your trackbar and mounts to the factory axle bracket (typical with an lift that includes an adjustable trackbar), choose this BRACKET.
- This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.
ART-JK4452
This heavy bracket is designed to take serious abuse and replace your front 30 or 44 JK factory trackbar bracket. The 1/4" thick precision cut and formed components of this setup out perform the competition. NOTE: This bracket offers raised trackbar holes at 3.0". THIS BRACKET IS FOR USE WITH A DRAG LINK FLIP (WHICH REQUIRES A NEW TRACKBAR, MINIMUM 3" LIFT and BUMPSTOP EXTENSIONS). This bracket has nothing to do with your lift amount. If your lift replaces your trackbar and mounts to the factory axle bracket (typical with a lift that includes an adjustable trackbar), choose STOCK HEIGHT BRACKET. STOCK BRACKET REPLACEMENT.
Upgrade your vehicle’s off-roading capabilities with Artec Industries’ Heavy-Duty Rear Trackbar Bracket. Built to withstand serious abuse, this bracket replaces your worn factory bracket and offers superior performance with ¼" thick precision cut components. With raised trackbar holes for multiple lift styles, this bracket also adjusts the roll center higher for greater stability and improves ground clearance over factory brackets. Don’t settle for subpar equipment. Choose Artec Industries for the ultimate off-roading experience.
Features:
- 1/4" steel
- CNC laser cut and CNC bent for precise fit
- Engineered using 3D scan files
- Replaces factory bracket
- Engineered for lifts 3” or higher
- Raises roll center for increased stability
- Improved ground clearance
- Made in the USA
Notes:
- This bracket offers raised trackbar holes at 3.0". THIS BRACKET IS FOR USE WITH A DRAG LINK FLIP (WHICH REQUIRES A NEW TRACKBAR, MINIMUM 3" LIFT and BUMPSTOP EXTENSIONS). This bracket has nothing to do with your lift amount.
- NOT FOR USE WITH 1ST GENERATION ARTEC TRUSSES. ENSURE YOUR RECEIPT SAYS JK APEX TRUSS FOR COMPATIBILITYWITH THIS PRODUCT
ART-JK4453
FOR USE WITH APEX TRUSS OR NO TRUSS ONLY. DOES NOT WORK WITH 1ST GEN TRUSSES This heavy bracket is designed to take serious abuse and replace your front 30 or 44 JK factory trackbar bracket. The 1/4" thick precision cut and formed components of this setup out perform the competition. NOTE: If your lift replaces your trackbar and mounts to the factory axle bracket (typical with an lift that includes an adjustable trackbar), choose this BRACKET.
Upgrade your vehicle’s off-roading capabilities with Artec Industries’ Heavy-Duty Rear Trackbar Bracket. Built to withstand serious abuse, this bracket replaces your worn factory bracket and offers superior performance with ¼" thick precision cut components. With raised trackbar holes for multiple lift styles, this bracket also adjusts the roll center higher for greater stability and improves ground clearance over factory brackets. Don’t settle for subpar equipment. Choose Artec Industries for the ultimate off-roading experience.
Features:
- 1/4" steel
- CNC laser cut and CNC bent for precise fit
- Engineered using 3D scan files
- Replaces factory bracket
- Improved ground clearance
- Made in the USA
Notes:
- If your lift replaces your trackbar and mounts to the factory axle bracket (typical with an lift that includes an adjustable trackbar), choose this BRACKET.
- NOT FOR USE WITH 1ST GENERATION ARTEC TRUSSES. ENSURE YOUR RECEIPT SAYS JK APEX TRUSS FOR COMPATIBILITYWITH THIS PRODUCT
