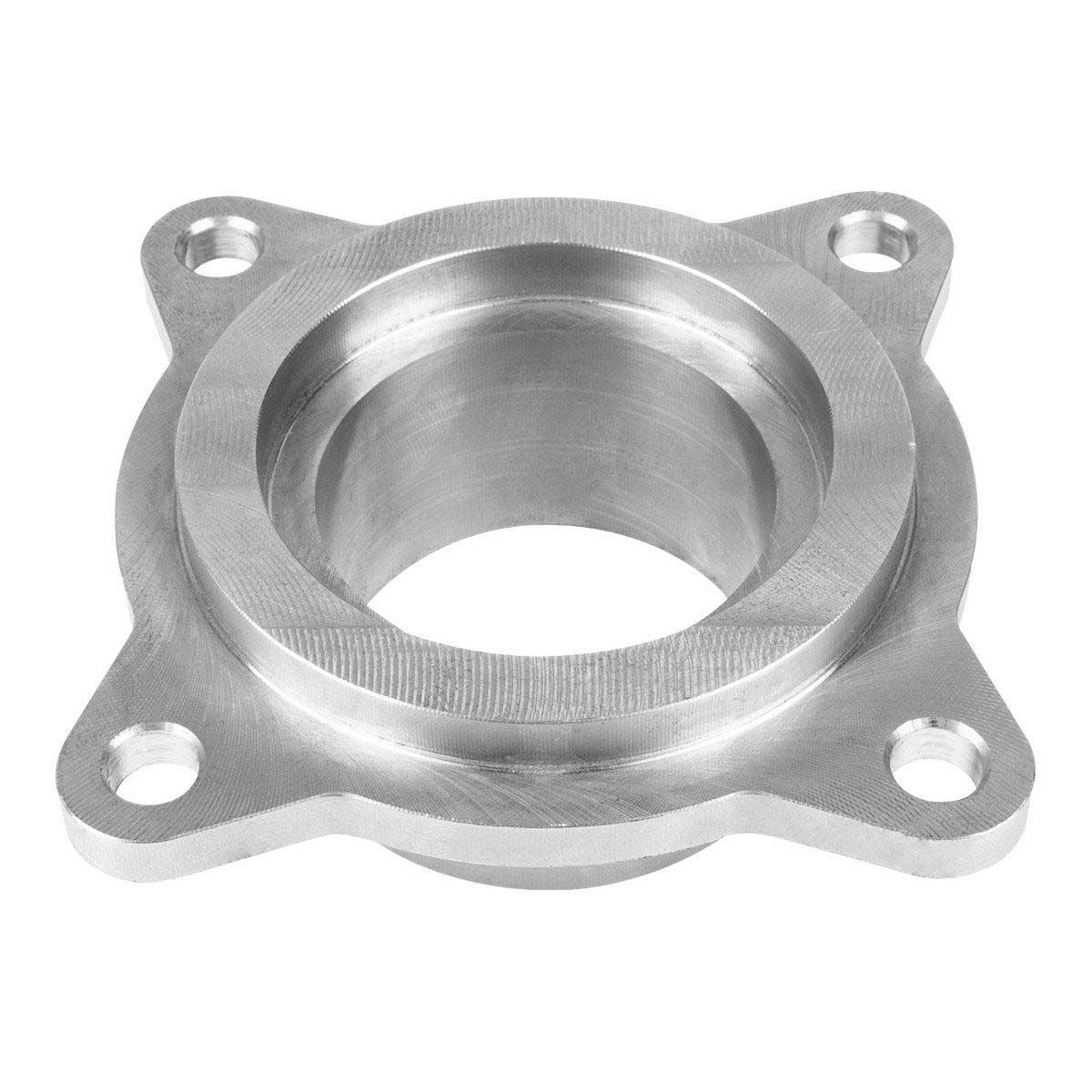

Trail-Gear Weld-On Rear Axle End Flanges Pair for Toyota 1979-1995 Pickup / 2005-2015 Tacoma
Known for their strength, light weight, and simplicity, Toyota axles are the perfect fit for many custom off-road projects. Factory Toyota axle housings are available in a narrow range of widths which may not fit your crawler well. Trail-Gear Fabricated Axle Housings allow you to use Toyota axles in nearly any width from the narrowest of moon buggies to full-size trucks.
These flanges can be welded to the bare tubes of Trail-Gear's 8", 8" E-locker, and 8.4" Fabricated Axle housings. Flanges are designed to work with 79-95 Toyota Pickup or 05-15 Toyota Tacoma rear axle housing components. Available to fit 3.5” OD tubing with either a ¼” or 3/8” wall thickness.
Sold as a set of (2) flanges.
Features:
- Fits Fabricated 8”, 8” Elocker, or 8.4” Axle housing
- Available with 1/4” or 3/8” wall thickness
- Flanges are CNC machined from Billet steel
- Flanges work with all factory axle and brake components
- sold as a set of (2) flanges
| Part # | Description | OD | Wall Thickness |
|---|---|---|---|
| TGI-306105-KIT | Weld-On Rear Axle End Flanges Pair 1979-1995 Toyota Pickup | 3.5 OD | 1/4" Wall |
| TGI-306106-KIT | Weld-On Rear Axle End Flanges Pair 1979-1995 Toyota Pickup | 3.5 OD | 3/8" Wall |
| TGI-306109-KIT | Weld-On Rear Axle End Flanges Pair 2005-2015 Toyota Tacoma | 3.5 OD | 1/4" Wall |
| TGI-306110-KIT | Weld-On Rear Axle End Flanges Pair 2005-2015 Toyota Tacoma | 3.5 OD | 3/8" Wall |
