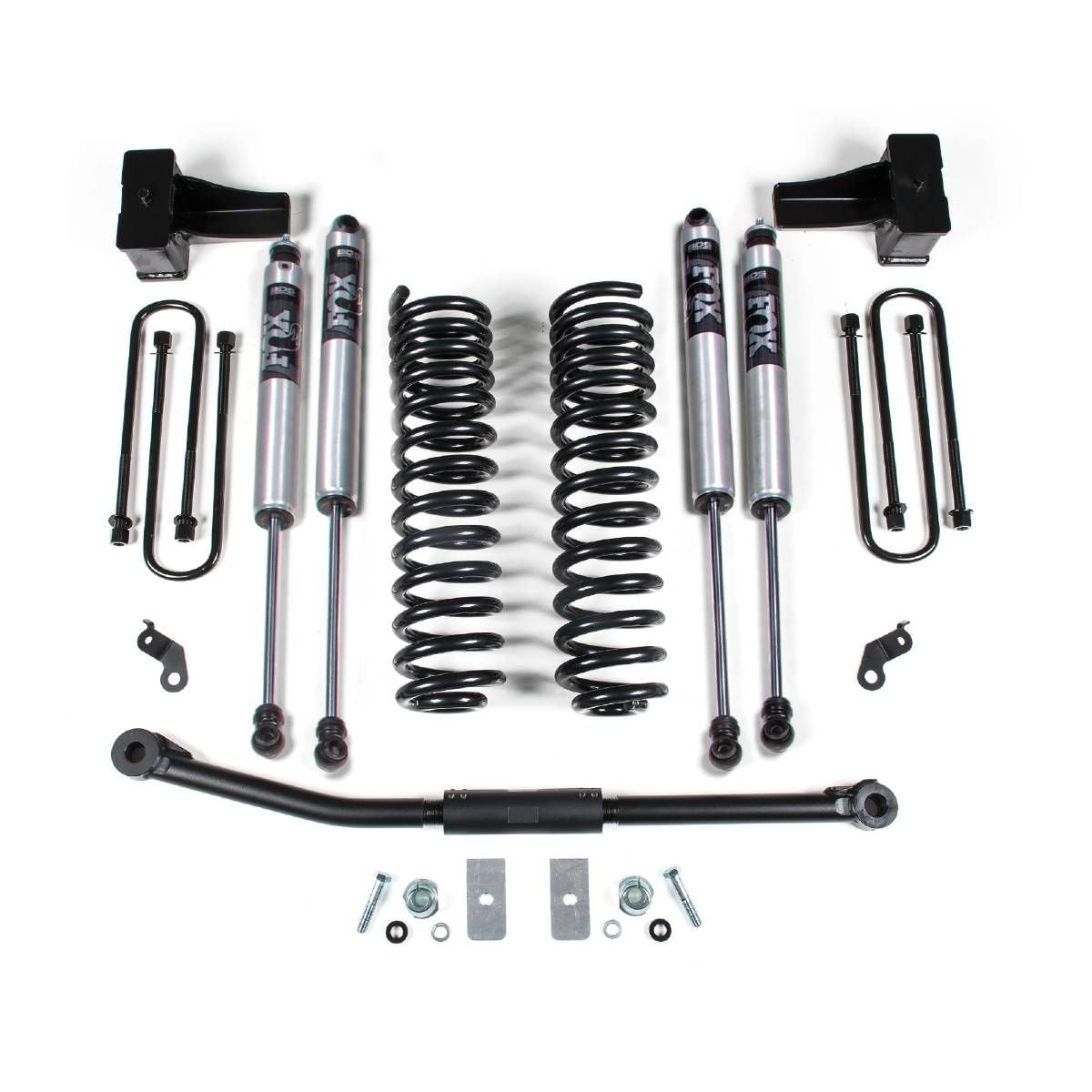

Improve the ride and level out your 2011-2016 Ford F250 and F350 Super Duty diesel powered truck with this 2.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
2.5 Inch Lift Kit | Ford F250/F350 Super Duty (2011-2016) 4WD | Diesel
4" Block Kit
FOX 2.0 PS
BDS-1510H
2.5 Inch Lift Kit | Ford F250/F350 Super Duty (2011-2016) 4WD | Diesel
4" Block Kit
NX2 Nitro
BDS-1925FS
2.5 Inch Lift Kit | Ford F250/F350 Super Duty (2011-2016) 4WD | Diesel
5" Block Kit
FOX 2.0 PS
BDS-1925H
2.5 Inch Lift Kit | Ford F250/F350 Super Duty (2011-2016) 4WD | Diesel
5" Block Kit
NX2 Nitro
BDS-1927FS
2.5 Inch Lift Kit | Ford F250/F350 Super Duty (2011-2016) 4WD | Diesel
No Block
FOX 2.0 PS
BDS-1927H
2.5 Inch Lift Kit | Ford F250/F350 Super Duty (2011-2016) 4WD | Diesel
No Block
NX2 Nitro
Improve the ride and level out your 2011-2016 Ford F250 and F350 Super Duty diesel powered truck with this 2.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, high strength 1-3/8 inch solid steel track bar for steering correction, brake line brackets and precision tuned nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.
Features:
Easy, 100% Bolt-on installation
Pro-Ride dual rate coil springs ride smooth through any terrain
Adjustable solid steel track bar designed to recenter the front axle
Fabricated steel blocks provide level stance from front to rear
Standard NX2 Nitro shocks with vehicle-specific valving for better control
Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Specifications:
Front Lift Method : Coil Spring
Front Lift Height : 2.5
Rear Lift Method : Block
Rear Lift Height : 4"
Shocks Included : Yes
Lift Height : 2-3.5"
Recommended Tires & Wheels (Trimming may be required)
35 x 12.5 with 17 x 9 and 5 in. Backspace
35 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5 in. Backspace
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
HD Adjustable Track Bar
Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.
Rear Lift Option:
No Block
Tail low stance
4 Inch Block Kit
Level stance
5 Inch Block Kit
Tail high stance
Shock Option:
NX2 Nitro Series
Nitrogen-charged
Twin-tube design
10-stage velocity-sensitive valving
Dual-welded ends for increased strength
1-3/8-inch high-flow piston
Self-lubricating seals
Silver powder coat finish
FOX 2.0 Performance Series
2-inch Impact extruded aluminum body
Internal floating piston (IFP) monotube design
CNC machined 6061-T6 aluminum mounting ends
Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Long-lasting clear anodized finish
Notes:
Designed for Diesel models w/o top mounted overload rear springs
Models equipped with a 3-3/4" rear block from the factory do not require a rear block kit in order to achieve a more level stance.
For a more tail-high stance, substitute #013519 5" rear block kit
