Carli 2.5" / 3.5" Pintop System for 2017-2022 F250/F350 4x4

Carli's most popular system, the Pintop kit boasts 2.5", Remote Reservoir King Shocks. Designed and tuned in house for the customer looking for substantial on-road and off-road performance improvement. Customers can expect more control and bottom-out resistance than the Backcountry.

Fits:

• 2.5" Lift - 2017-2019 F250/350 4x4 Diesel
• 3.5" Lift - 2020-2022 F250/350 4x4 Diesel

The Backcountry on steroids, take the description for the Backcountry and throw an exponent on it. This system is Carli most popular, all around suspension system. The on-road ride is terrific, sharp edges are rounded and light to medium duty offroad escapades become completely controlled and uneventful. Most Carli videos were filmed with the Pintop kit showcasing the extremes of its capability.

The Pintop is a Jack-of-all-trades system from which every Super Duty owner would benefit. Raising the Super Duty Platform then adding the 2.5" / 3.5" diameter shocks (55% more piston surface area than a 2.0" shock) will support the argument that these trucks should come equipped with 2.5" / 3.5" shocks from the factory. The higher end systems will get you more off-road capability, yes, and even a bit more on-road. The premium paid for these systems; however, doesn’t compare to the on and off-road ride quality per dollar spent on the Pintop. For these reasons, it will likely remain Carli best seller for years to come.

The Pintop system boasts Carli specific, blueprinted, King 2.5" / 3.5" shocks on all four corners. In an effort to provide customers with the best product, Carli designed a custom piston to determine proper base flow rates to ensure the shock works well in the heavy duty truck platform; Carli then tuned the shocks around the custom pistons based on the only thing that matters to us, seat-of-the-pants feel. Carli round off ALL Carli King shocks with shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King’s standard shafts, there is no coating to wear off, weather can’t hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn’t damaged as they’re not brittle like the stock, hardened shafts. The shocks are finished with King oil good to -55° F. Note that all King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, Carli recommend wrapping your shocks in 3M to provide a moisture barrier that’s replaceable.

The truck will sit 2.5" / 3.5" higher in the front and have more wheel travel thanks to the lighter rate Carli Coil Springs. The Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, Carli include Caster Shims to tighten the steering and a fabricated, High-Clearance Bump Stop Drop to keep the springs clear from the contacting the factory bump stop. The front Sway Bar Geometry will need to be addressed with your choice of a Sway Bar Drop Bracket (more economical, maintains the factory Sway Bar End Links) or Carli Extended Sway Bar links – a FAR more robust option. The replacement End Links are the only option compatible with a plow bracket.

The rear can be outfitted with a replacement Full Progressive Spring Pack (reduces capacity to a "light" ¾-ton) or factory leaf-pack modifying Progressive Add-a-Pack (eliminates the factory block and maintains payload capacity; pairs with a rear bump stop drop). This is where the F250 and F350 are a bit different. Since 2008, the main spring packs on these two trucks is different; the F250 has a lighter rate spring pack than its 350 counterpart. The F250 Add-a-Pack equipped systems are a nice improvement over stock; the F350 with the Add-a-Pack is still very stiff in the rear as the main pack doesn’t move much unless loaded. Carli recommend the Full Replacement Leaf Spring packs for both trucks but especially the F350 given the super-stiff factory springs. If capacity is a concern, an aftermarket airbag system should be installed to compliment the Full Progressive Leaf Springs to restore the F350 capacity. Carli recommend a system that will allow the airbags to disconnect from the lower mount during suspension cycling to ensure you’re able to take advantage of all your rear suspension travel. The Full Progressive Leaf Spring Pack will shift the axle slightly forward in the wheel well to ensure maximum tire clearance for a 37" M/T at full compression.

Wheel and Tire: Factory Wheels SHOULD NOT be run with oversized tires. They’re known to rub the radius arm, sway bar and most concerning – Brake Lines. Factory tires and factory wheels will work without issue but Carli DO NOT recommend running oversized tires on factory wheels. On Carli 2.5" / 3.5" Ford Systems, Carli recommend 17"-18" wheels, no more than 9" wide with 5.5" of backspacing with Carli Fabricated Radius Arms or 5" Backspace with factory arms; 5" will require a bit more trimming. Tires, 37×12.5" will fit with some trimming; 35" will likely fit without trimming. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.

Note: A "Base Kit" must be accompanied by a Sway Bar and Leaf Spring option to form a complete system.

Base Kit:

• (1) CS-FLC-05 - Front Leveling Coils

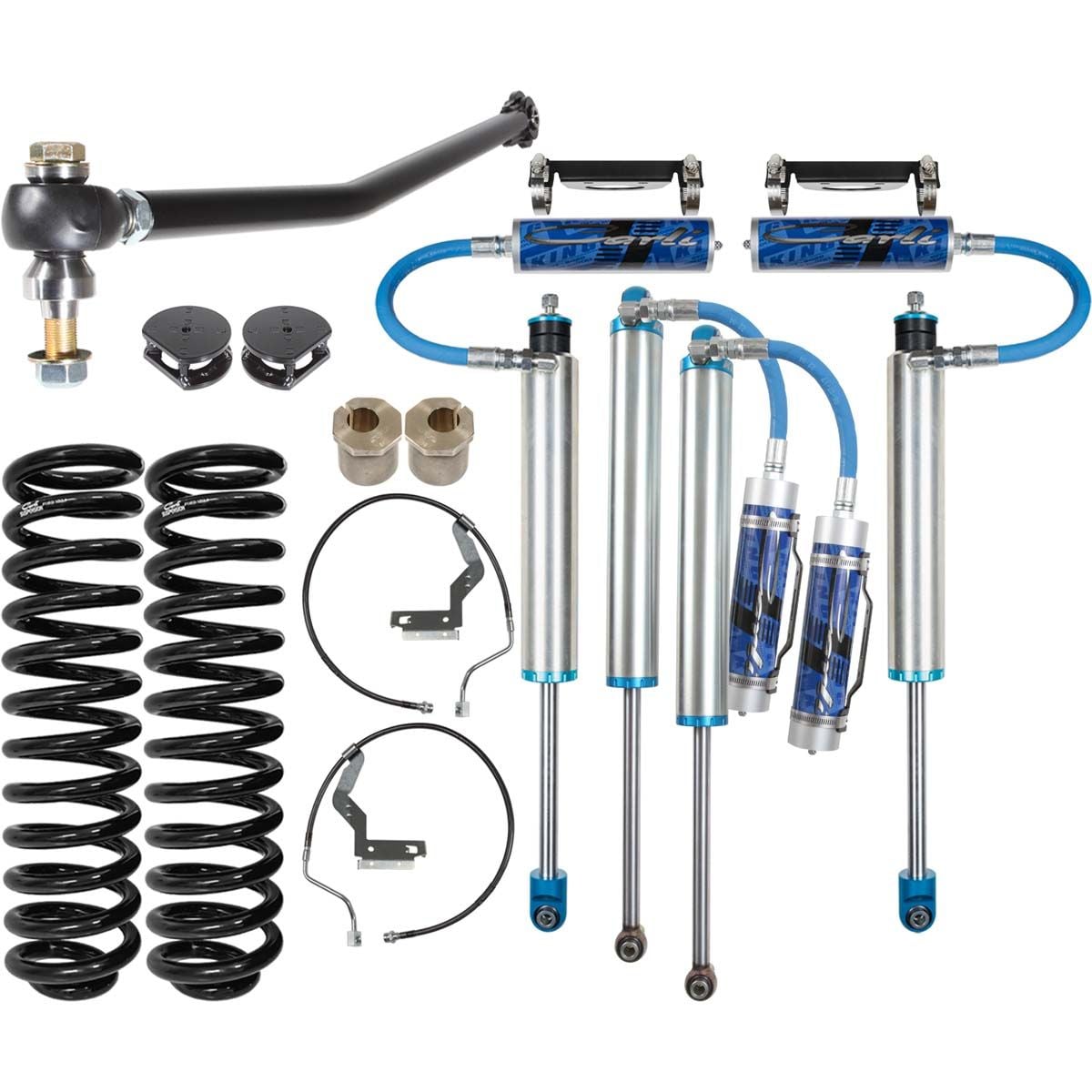

• (1) CS-FPT25SPKG-LVL-05 - Carli Custom Tuned KING 2.5" Remote Reservoir Shocks, Front and Rear with Stainless Shafts & Reservoir Mounts
• (1) CS-FORDBBL-LVL-17-F - Front Brake Lines
• (1) CS-FCASTERSHIM-2.5 - 2° Caster Shims
• (1) CS-FBDF-2.5-17 - High Clearance Bump Stop Drops, Front
• (1) CS-FATB-17 - Track Bar

OPTIONS:

Sway Bar Drop Brackets, Leveling - CS-FSBD-LVL-17

• Corrects Sway Bar Geometry in Carli Leveling Suspensions
• Fitment: 2017+ F250/350 4x4

Sway Bar End Links, Leveling - CS-FEL-LVL-17

• Extended Length to accommodate Leveled Trucks
• 17-4 Stainless Steel, Greasable and Fully Rebuildable
• Excellent Articulation
• Only Works on Carli Leveling Lifts
• Fitment: 2017-19 F250/F350 4x4

Torsion Sway Bar - WITH End Links, Leveling - CS-FTSB-LVL-17

• Direct Fitment to Carli Leveling Lifts
• Replaces Immobile Factory Sway Bar with Custom Torsion Bar
• Huge Ride Quality Improvement
• Includes CS-FEL-LVL-17 Drop Brackets and Sway Bar Links
• Fitment: 2017+ Ford F250/F350 4x4

Low Mount Steering Stabilizer - CS-FLMSS-05

• Stainless Steel Body and High Misalignment Pin
• Custom Valved for Larger Tires, Adjustable Nitrogen Pressure
• Hardened Nitride Shafts and Precision Bearings
• Includes Differential Guard and Clamp
• Combines with High-Mount Stabilizer for Opposing Setup
• Fitment: 2005+ F250/350 4x4
• Optimized for Carli 2.5"-5.5" Systems

High Mount Steering Stabilizer - CS-FHMSS-17

• Stainless Steel Body and High Misalignment Pin
• Custom Valved for Larger Tires, Adjustable Nitrogen Pressure
• Hardened Nitride Shafts and Precision Bearings
• Long Lasting Performance and Appearance
• Bolt in Replacement for OEM Stabilizer
• Fitment: 2017+ F250/350 4x4
• Works on leveled and lifted trucks ONLY

Fabricated Radius Arms, 2.5" Lift - CS-FARA-LVL-05

• 1° of Caster correction engineered into arm
• 3/16 Construction, Fully Internal Gusseted with 1/2" Additional Tire Clearance
• Limit Straps Kit Included
• Serviceable 17-4 Stainless Spherical Joint at Frame Connection for longevity and bind free Cycling
• Combines with Radius Arm Drop Brackets for 4.5" Carli Systems
• Fitment: 2005+ F250/350 4x4

Ford 2017 Progressive Add-A-Packs - Leveling - CS-FPAP-LVL-17

• Built in the U.S.A. By Deaver Leaf Spring
• Smooth, Progressive Design
• Supplied with Bump Stop Drops, U-bolts and hardware
• Pairs to Carli Leveling Lifts, provides 1/2"-1" high rear stance
• Eliminates the Factory Block
• Load capacity is maintained, ride quality is improved
• Fitment: 2017+ F250/350 4x4

Ford 2017 Full Progressive Leaf Packs For Leveling Systems - CS-FFSP-LVL-17

• Block eliminating, Full Progressive Spring Pack
• "Light" 3/4-Ton Capacity, Max Bed-load 2,000lbs.
• Includes new U-Bolts and Rear Bump Stop Drops
• Provides a 1", rear high stance on Matching 2.5" Leveling Suspension Systems
• 37" Tire Fitment
• Fitment: 2017+ F250/350 4x4, Diesel 3.5-4.0" Axle Tube

Ford 2017 Full Progressive Leaf Packs For Leveling Systems, Heavy Duty - CS-FFSP-LVL-17-HD

• Block eliminating, Full Progressive Spring Pack
• Heavy Duty Full Replacement Leaf Springs designed for those with constant 1,000lbs in the bed
• Includes new U-Bolts and Rear Bump Stop Drops
• Provides a 1", rear high stance on Matching 2.5" Leveling Suspension Systems
• 37" Tire Fitment
• Fitment: 2017+ F250/350 4x4, 3.5"-4" Axle Tube
