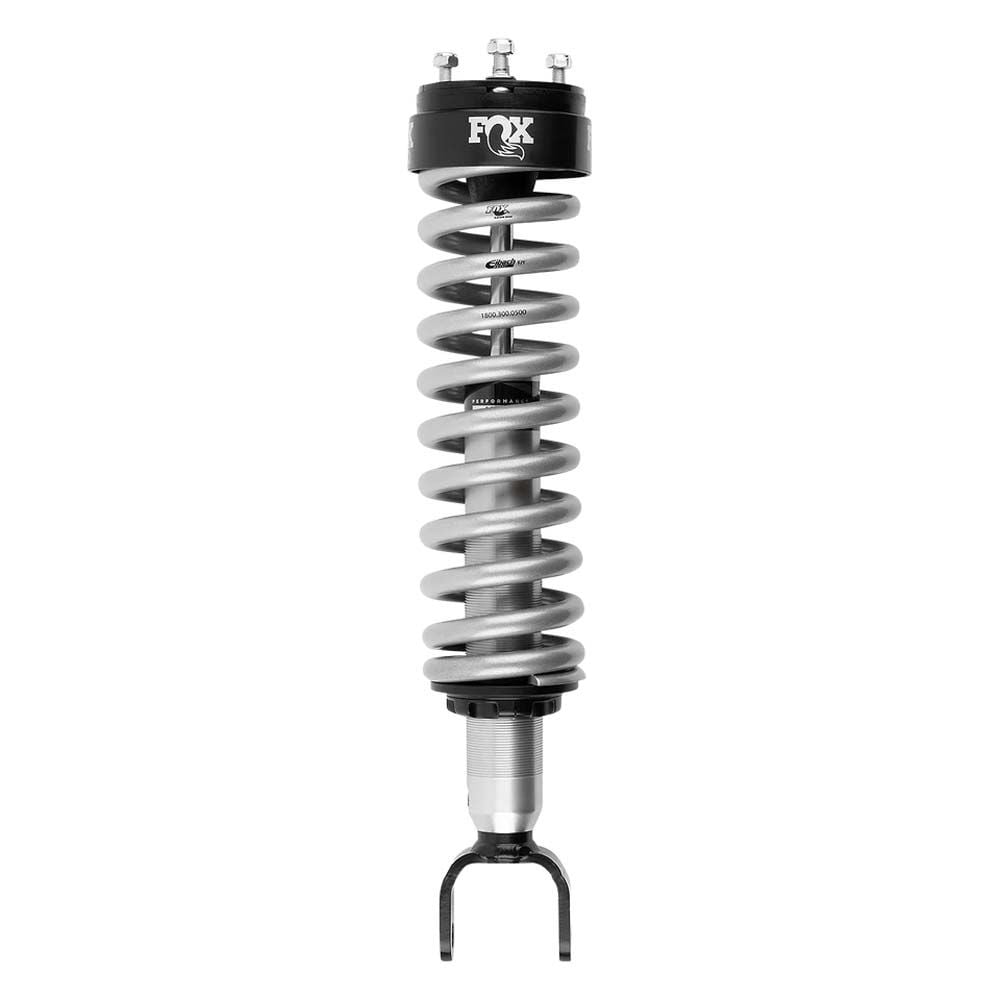

Fox 2.0" Performance Series Smooth Body Front Shock for 2011-2019 Ram 1500 (0-2" Lift)
FOX bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.</p>
<p>Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.
| Part # | Model | Year | WD | Note | Extended (in) | Compressed (in) | Travel (in) |
|---|---|---|---|---|---|---|---|
| FOX-983-02-050 | Ram 1500 | 2006 - 2008 | 4WD | Non Mega Cab / Without Air Ride [Gas] | 20.46 | 15.06 | 5.39 |
| FOX-983-02-050 | 1500 | 2009 - 2018 | 4WD | Without Air Ride [Gas] | 20.46 | 15.06 | 5.39 |
| FOX-983-02-050 | 1500 Classic | 2019 - 2023 | 4WD | Without Air Ride [Gas] | 20.46 | 15.06 | 5.39 |
| FOX-985-02-020 | 1500 | 2014 - 2018 | 4WD | Without Air Ride [Diesel] | 20.46 | 15.06 | 5.39 |
| FOX-985-02-020 | 1500 Classic | 2019 | 4WD | Without Air Ride [Diesel] | 20.46 | 15.06 | 5.39 |
| FOX-985-02-136 | 1500 DT | 2019 - 2020 | ALL | Does Not Fit Air Ride Models | 20.86 | 15.46 | 5.39 |
| FOX-985-02-136 | 1500 DT | 2021 - 2025 | ALL | Excludes TRX and Air Ride Models | 20.86 | 15.46 | 5.39 |
FOX bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.
Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.
Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
Features:
Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; IFP Separates Oil From High-Pressure Nitrogen Gas; Black Anodized CNC Machined Aluminum
Components:
- SERIES - Performance
- BODY - 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
- BODY PLATING - Clear-anodized for a durable finish
- COMPONENTS - Black-anodized, CNC-machined 6061-T6 billet aluminum
- SHAFT - 5/8" hard chrome plated heat-treated alloy steel
- PISTON - Race-developed high-flow piston design
- VALVING - Application specific valving to maximize performance
- SEALS - Redundant sealing pack system main seal, wiper seal, scraper seal
- BEARINGS - Large diameter, heavy-duty spherical
