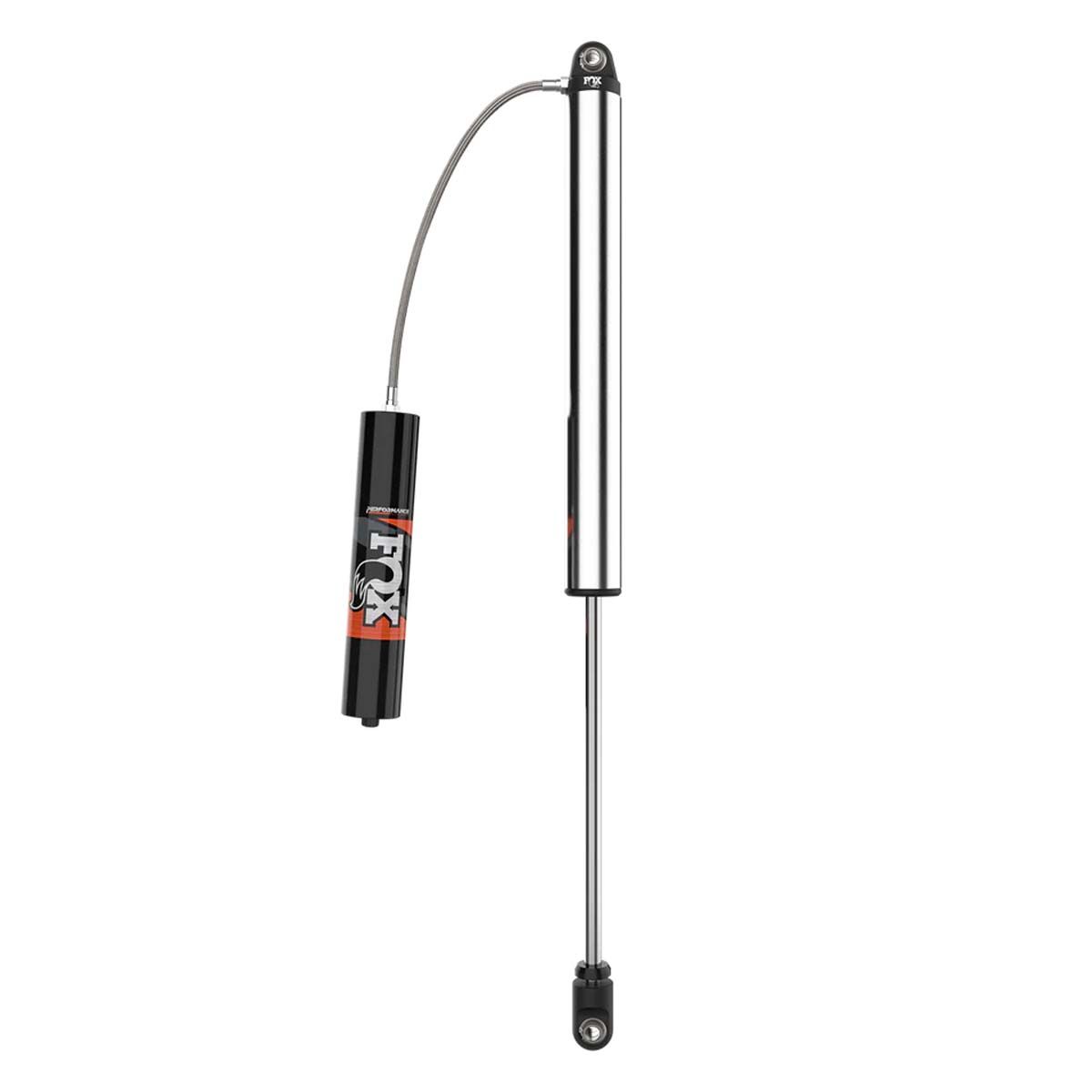

Fox 2.0" Performance Elite Smoothbody Remote Reservoir Shocks, 7/8" Shaft

Smooth Body shocks deliver the damping performance Fox is known for in an easy-to-mount assembly, ideal for applications that are already equipped with a primary spring to suspend the vehicle’s weight (i.e. leaf springs or torsion bar).

Fox's new 2.0 Performance Elite Series Smooth Body shocks are available in 5/8” or 7/8” hard chrome plated 4130 chromoly shaft variations. Dual Speed
Compression (DSC) adjusters are also available on shocks equipped with 7/8” shafts.

Specs:

• COATING - Clear Zinc Plated
• SHAFT - 7/8” Hard Chrome Plated 4130 Chromoly Steel
• PISTON - 8-Port Sintered Iron-Copper Graphite High-Flow Piston
• SEALS - Standard Buna Seal Kit
• REMOTE HOSE - -8 Stainless Steel Braided Hoses with Crimp Fittings
• HEIMS - -8 PFTE lined, heat treated spherical bearings
• FAV (Fox Air Valve) - Black Plastic FAV Cap

Poly Performance stocks shocks as below, if you require anything different, we would be happy to assist you, please contact us.

• 1.25" mounting width with 1/2" bolt
• Sold Individually, not as a pair or set

Installation Instructions
