S&B Filters Replacement Fuel Tank for 2007+ Mercedes Sprinter Van
| Part # | Description |
|---|---|
| SBF-10-1024 | 47 Gallon Replacement Fuel Tank for 2007-2018 Mercedes Sprinter 144" & 170" Wheelbase |
| SBF-10-1025 | 47 Gallon Replacement Fuel Tank for 2019-2022 Mercedes Sprinter 144" & 170" Wheelbase |
| SBF-10-1026 | 40 Gallon Replacement Fuel Tank for 2007-2018 Mercedes Sprinter 144" & 170" Wheelbase |
| SBF-10-1027 | 40 Gallon Replacement Fuel Tank for 2020-2024 Chassis Winnebago Revel, more |
| SBF-10-1031 | 45 Gallon Replacement Fuel Tank for 2023-2024 Mercedes Sprinter 144" & 170" Wheelbase |
| SBF-10-1032 | 40 Gallon Replacement Fuel Tank for 2023-2024 Mercedes Sprinter, 2.0L, Diesel |

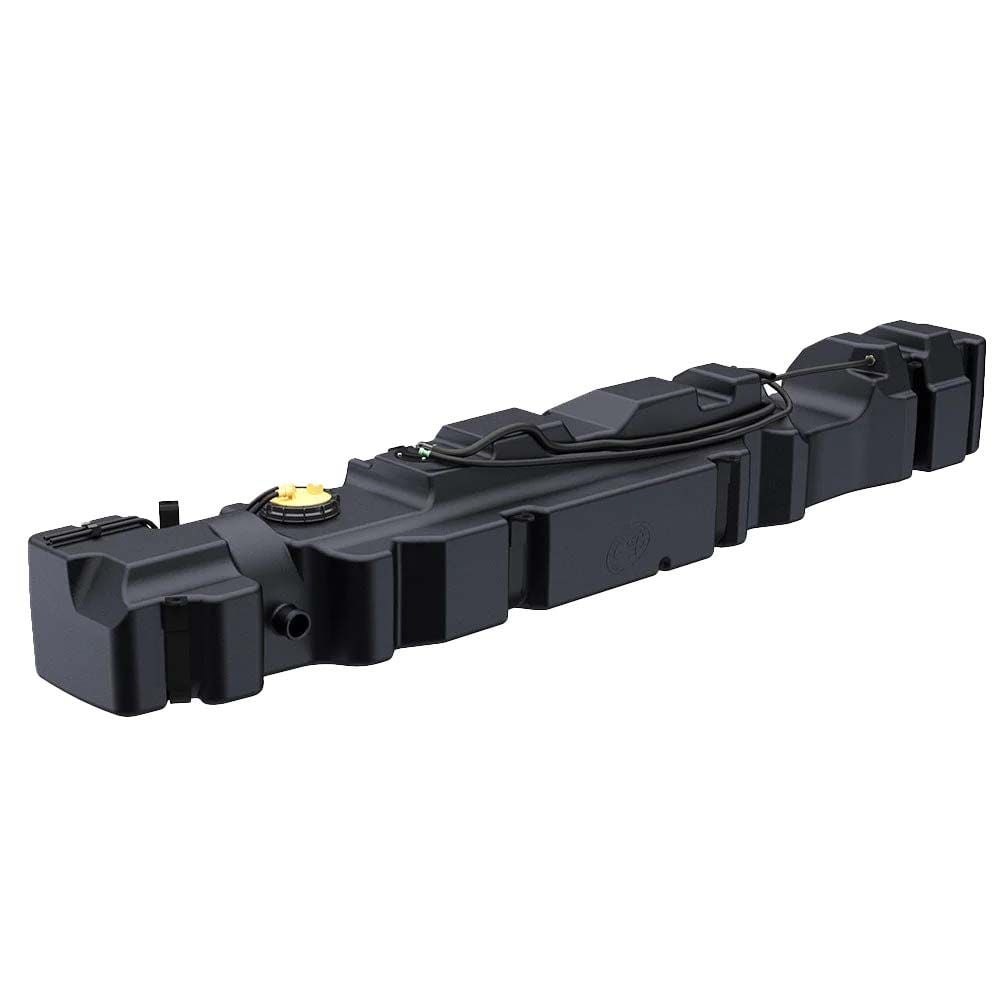

SBF-10-1024
This tank will NOT fit 170" Crew Vans or 144" Dually Vans, part # 10-1026 will work for the 170" Crew Vans and 144" Dually Vans. This tank will also not work with 144" vans that have ride height sensors connected to the rear axle, please see important note C on the instructions.
Do you have an Auxiliary Fuel Tank? Read why using these with S&B Filters tanks will void the Lifetime Warranty.
When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call S&B, send a message with y S&B Filters VIN, or consult with y S&B Filters installer to confirm if y S&B Filters van has J51.
- Dimensions: 98.28" X 15.41" X 14.28"
- Drain: No
- Ground clearance compare to oe tank: 1.5"
- Oem capacity: 24 Gallons
- Sending unit: OE
- Straps included: Yes
- Sump: No
- S&B Capacity (Approximate): 47 Gallons
- Tank type: Midship
- Weight dry: 45lbs
Fitment:
| Year | Make | Model | Engine |
|---|---|---|---|
| 2007-2018 | Mercedes | Sprinter | 3.0L, Diesel |
| 2007-2018 | Mercedes | Sprinter | 2.0L, Diesel |
| 2009-2019 | Coachmen | Prism | 3.0L, Diesel |
| 2010-2018 | Forest River | Solera | 3.0L, Diesel |
SBF-10-1025
This tank will NOT fit:
144" Dually Vans
170" Crew Vans (1 row of seats)
With plumbing/items 24 inches from the rear end of the OEM tank or 19 inches from the rear end of the large rear cross-member.
Part # 10-1027 is a shorter 40 gallon tank and will work for all the above.
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call S&B, send a message with y S&B Filters VIN, or consult with y S&B Filters installer to confirm if y S&B Filters van has J51.
When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
- Dimensions: 98.28" X 15.41" X 14.17"
- Drain: No
- Ground clearance compare to oe tank: 1.5"
- Oem capacity: 24 Gallons
- Sending unit: OE
- Straps included: Yes
- Sump: No
- S&B Capacity (Approximate): 47 Gallons
- Tank type: Midship
- Weight dry: 45lbs
Fitment:
| Year | Make | Model | Engine |
|---|---|---|---|
| 2019-2022 | Mercedes | Sprinter | 2.0L, Diesel |
| 2019-2022 | Mercedes | Sprinter | 3.0L, Diesel |
| 2019-2022 | Mercedes | Sprinter | 2.0L, Diesel |
| 2019-2022 | Mercedes | Sprinter | 3.0L, Diesel |
| 2020-2024 | Winnebago | Navion | 3.0L, Diesel |
| 2020-2024 | Winnebago | View | 3.0L, Diesel |
| 2022-2023 | Winnebago | Adventure Wagon 70 | 3.0L, Diesel |
| 2020-2023 | Storyteller | Classic Mode 4x4 | 3.0L, Diesel |
| 2021-2023 | Storyteller | Stealth Mode 4x4 | 3.0L, Diesel |
| 2020-2023 | Storyteller | Beast Mode 4x4 | 3.0L, Diesel |
| 2022-2023 | Pleasure-Way | Rekon 4x4 | 3.0L, Diesel |
SBF-10-1026
S&B Tanks are high capacity direct replacements for the OE fuel tank. Allowing for almost double the fuel capacity, so you can go further and not waste time at the pumps. Let us fuel y S&B Filters adventure.
Do you have an Auxiliary Fuel Tank? Read why using these with S&B Filters tanks will void the Lifetime Warranty.
When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call S&B, send a message with y S&B Filters VIN, or consult with y S&B Filters installer to confirm if y S&B Filters van has J51.
- Drain: No
- Ground clearance compare to oe tank: 1.5"
- Oem capacity: 24 Gallons
- Sending unit: OE
- Straps included: Yes
- Sump: No
- S&B Capacity (Approximate): 40 Gallons
- Tank type: Midship
- Weight dry: 37lbs
Fitment:
| Year | Make | Model | Engine |
|---|---|---|---|
| 2018-2019 | Winnebago | Revel (2017-2018 Chassis) | 3.0L, Diesel |
| 2007-2018 | Mercedes | Sprinter | 2.0L, Diesel |
| 2007-2018 | Mercedes | Sprinter | 3.0L, Diesel |
| 2009-2019 | Coachmen | Prism | 3.0L, Diesel |
SBF-10-1027
Fits 170" & 144" Crew Vans, Sanctuary, Tranquility, Entegra Launch, Jayco Terrain, 2020+ Revels with AGM and Lithium batteries and any builds that have plumbing or interference behind the original fuel tank. Click here for more info. Fits Airstream 24x w/ slight adjustment, see the video here.
Do you have an Auxiliary Fuel Tank? Read why using these with S&B Filters tanks will void the Lifetime Warranty.
When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). All 2020+ Revels should have been built with this option but please confirm by sending us y S&B Filters vin or consulting with y S&B Filters installer.
- Dimensions: 79.91 x 15.94 x 14.18
- Drain: No
- Ground clearance compare to oe tank: 1.5"
- Oem capacity: 24 Gallons
- Sending unit: OE
- Straps included: Yes
- Sump: No
- S&B Capacity (Approximate): 40 Gallons
- Tank type: Midship
- Weight dry: 37lbs
Fitment:
| Year | Make | Model | Engine |
|---|---|---|---|
| 2019-2024 | Winnebago | Revel (4WD Chassis) | 3.0L, Diesel |
| 2024 | Thor | Tranquility | 3.0L, Diesel |
| 2024 | Thor | Sanctuary | 3.0L, Diesel |
| 2022-2023 | Jayco | Terrain | 3.0L, Diesel |
| 2022-2023 | Entegra | Launch | 3.0L, Diesel |
| 2020-2024 | Grech | Turismo | 3.0L, Diesel |
SBF-10-1031
This tank will NOT fit:
144" Dually Vans
170" Crew Vans (1 row of seats)
With plumbing/items 24 inches from the rear end of the OEM tank or 19 inches from the rear end of the large rear cross-member.
Storyteller XO (accommodation coming soon)
Part # 10-1032 is a shorter 40 gallon tank and will work for 170" Crew Vans and vans with plumbing behind the tank
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call S&B, send a message with y S&B Filters VIN, or consult with y S&B Filters installer to confirm if y S&B Filters van has J51.
When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
- Dimensions: 98.28" X 15.41" X 14.17"
- Drain: No
- Ground clearance compare to oe tank: 1.5"
- Oem capacity: 24 Gallons
- Sending unit: OE
- Straps included: Yes
- Sump: No
- S&B Capacity (Approximate): 45 Gallons
- Tank type: Midship
- Weight dry: 45lbs
Fitment:
| Year | Make | Model | Engine |
|---|---|---|---|
| 2023-2024 | Mercedes | Sprinter | 2.0L, Diesel |
| 2023-2024 | Storyteller | Classic Mode 4x4 | 3.0L, Diesel |
| 2023-2024 | Storyteller | Stealth Mode 4x4 | 3.0L, Diesel |
| 2023-2024 | Storyteller | Beast Mode 4x4 | 3.0L, Diesel |
| 2025 | Winnebago | Ekko | 2.0L, Diesel |
SBF-10-1032
The S&B Tank for AWD vans fits 170" Crew, Sanctuary, Tranquility, Entegra Launch, Jayco Terrain, 2025+ Revels and any builds that have plumbing or interference behind the original fuel tank. Click here for more info.
When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). All 2020+ Revels should have been built with this option but please confirm by sending us y S&B Filters vin or consulting with y S&B Filters installer.
Note: Will not fit 144" Dually.
- Dimensions: 79.91 x 15.94 x 14.18
- Drain: No
- Ground clearance compare to oe tank: 1.5"
- Oem capacity: 24 Gallons
- Sending unit: OE
- Straps included: Yes
- Sump: No
- S&B Capacity (Approximate): 40 Gallons
- Tank type: Midship
- Weight dry: 37lbs
Fitment:
| Year | Make | Model | Engine |
|---|---|---|---|
| 2025 | Winnebago | Revel (AWD Chassis) | 2.0L, Diesel |
| 2023-2024 | Mercedes | Sprinter | 2.0L, Diesel |
| 2024 | Jayco | Terrain | 2.0L, Diesel |
| 2024 | Entegra | Launch | 2.0L, Diesel |
