MagnaFlow 2007-2018 Jeep Wrangler JK 3.6L Overland Series Performance Exhaust System

MAG-19539

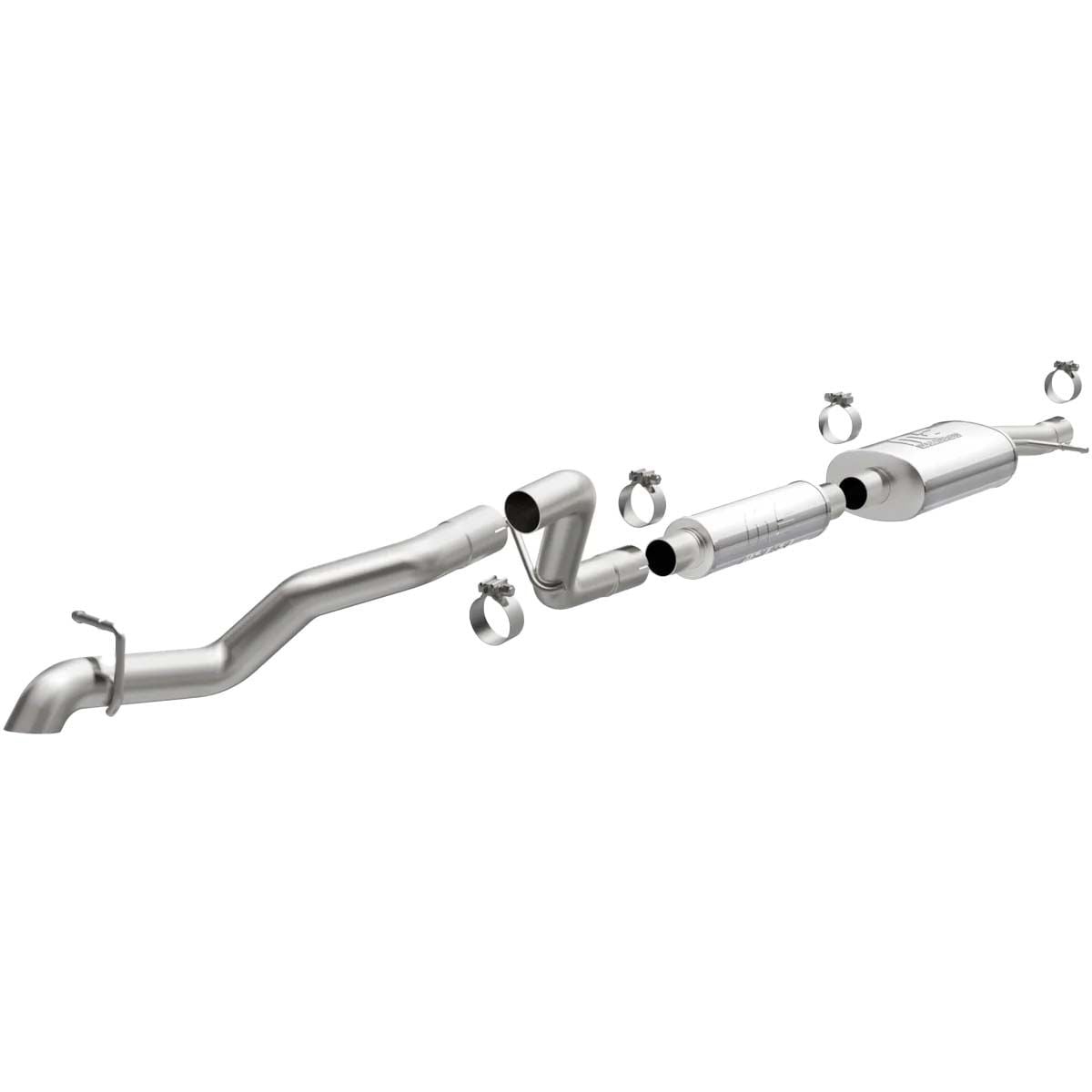

The MagnaFlow® JK Jeep Wrangler Overland Series™ Cat-Back Performance Exhaust System #19539 will inject your Jeep Wrangler JK Unlimited with MagnaFlow®’s deep signature sound and dyno-proven performance. MagnaFlow® exhaust kit #19539 is weight optimized for improved utility and features a single straight-through muffler with 2.5” mandrel bent main piping that fits closer to the undercarriage of the vehicle compared to the stock configuration. This combined with a no-tip, high clearance driver side rear exit greatly enhances your JK Jeep Wrangler’s ground clearance and departure angles. The exhaust system was designed to be compatible with the most popular bolt-on aftermarket modifications. Each system incorporates MagnaFlow®’s No Drone Technology, which mitigates interior noise by cancelling out the natural droning frequencies produced by your JK Jeep Wrangler at cruising speeds while retaining the character of your engine’s exhaust note. CNC precision robotic manufacturing techniques enable perfect fitment and allow for hassle-free bolt-on installation. MagnaFlow® #19539 is made entirely of durable stainless steel and backed by MagnaFlow®’s limited lifetime construction warranty.

Features:

• High clearance exit
• Dyno proven performance
• No-Drone-Technology allows for a quiet cabin

Specifications:

• TYPE: Cat-Back
• MOUNTING BRACKET INCLUDED: No
• GASKET OR SEAL INCLUDED: No
• INLET TYPE: Clamp-On
• EXHAUST TIP QUANTITY: 0
• MUFFLER TYPE: Straight-Through
• CLAMPS INCLUDED: Yes
• PIPE MATERIAL: Stainless Steel
• CLAMPING TYPE: Round Band
• HANGERS INCLUDED: Yes
• MUFFLER BODY MATERIAL: Stainless Steel
• MUFFLER QUANTITY: 2
• VALVE INCLUDED: No
• EXIT STYLE: Single Straight Driver Side Rear
• MAIN PIPING DIAMETER: 2.5IN
• MUFFLER FINISH: Brushed
• SERIES: Overland
• MUFFLER (CENTER) BODY HEIGHT: 5IN
• MUFFLER (FRONT) BODY LENGTH: 14IN
• MUFFLER (FRONT) BODY WIDTH: 8IN
• MUFFLER (REAR) BODY HEIGHT: 4IN
• MUFFLER (REAR) BODY LENGTH: 14IN
• MUFFLER (REAR) BODY WIDTH: 4IN
• CATALYTIC CONVERTER INCLUDED: No

Hardware Kit:

• 2.5IN. BAND CLAMPS

MAG-19668

The MagnaFlow® Jeep Wrangler JK Overland Series™ Axle-Back Performance Exhaust System #19668 is engineered for off-road function and built to explore further. This Jeep Wrangler exhaust system is designed for the Jeep Wrangler equipped with the V6 3.6L or 3.8L engine option. The high clearance exhaust design of this kit is designed to keep clear of any challenging terrain or obstacles you may come across. #19668 2.5” diameter mandrel bent main piping passes through an 18” straight-through oval muffler and No Drone Technology (NDT) tuned chamber before exiting in a high-clearance tucked tailpipe to the rear of the passenger side. MagnaFlow® NDT utilizes passive quarter-wave noise cancellation to minimize the unwanted droning noises that can otherwise occur at highway cruising speeds. The entire Jeep exhaust kit can be tailored to your preferred exhaust tone by changing out which module is attached to the integrated muffler’s accessory port. The included pipe cap, J-pipe and NDT modules can be combined in various ways to mitigate a wide range of droning frequencies, so which exhaust sound profile you choose to go with is up to your driving style. Looking to minimize overall drone? Simply connect the NDT module. Prefer a more traditional rendition of that famous MagnaFlow® exhaust tone? All you need to do is cover the accessory port with the included pipe cap. Exhaust kit #19668 utilizes a direct-fit, easy to install design that replaces your OEM exhaust system from near the rear axle on back. This performance exhaust system is made of durable stainless steel backed by MagnaFlow®’s limited lifetime warranty.

Features:

• High clearance exit
• Dyno proven performance
• No-Drone-Technology allows for a quiet cabin

Specifications:

• TYPE: Axle Back
• MOUNTING BRACKET INCLUDED: No
• GASKET OR SEAL INCLUDED: No
• INLET TYPE: Clamp-On
• EXHAUST TIP QUANTITY: 0
• MUFFLER TYPE: Straight-Through;Tuned Chamber
• CLAMPS INCLUDED: Yes
• PIPE MATERIAL: Stainless Steel
• CLAMPING TYPE: Round Band
• HANGERS INCLUDED: Yes
• VALVE INCLUDED: No
• EXIT STYLE: Single Straight Passenger Side Rear
• MAIN PIPING DIAMETER: 2.5IN
• MUFFLER FINISH: Brushed
• SERIES: Overland
• MUFFLER (FRONT) BODY HEIGHT: 4IN
• MUFFLER (FRONT) BODY LENGTH: 14IN
• MUFFLER (FRONT) BODY WIDTH: 4IN
• MUFFLER (REAR) BODY HEIGHT: 5IN
• MUFFLER (REAR) BODY LENGTH: 18IN
• MUFFLER (REAR) BODY WIDTH: 8IN
• MUFFLER (FRONT) TYPE: Tuned Chamber
• MUFFLER (REAR) TYPE: Straight-Through
• CATALYTIC CONVERTER INCLUDED: No

Hardware Kit:

• 2.5IN. BAND CLAMPS
• PIPE CLAM
