MagnaFlow 2018-2026 Jeep Wrangler JL 2.0L / 3.6L Overland Series Performance Exhaust System

MAG-19592 (3.6L)

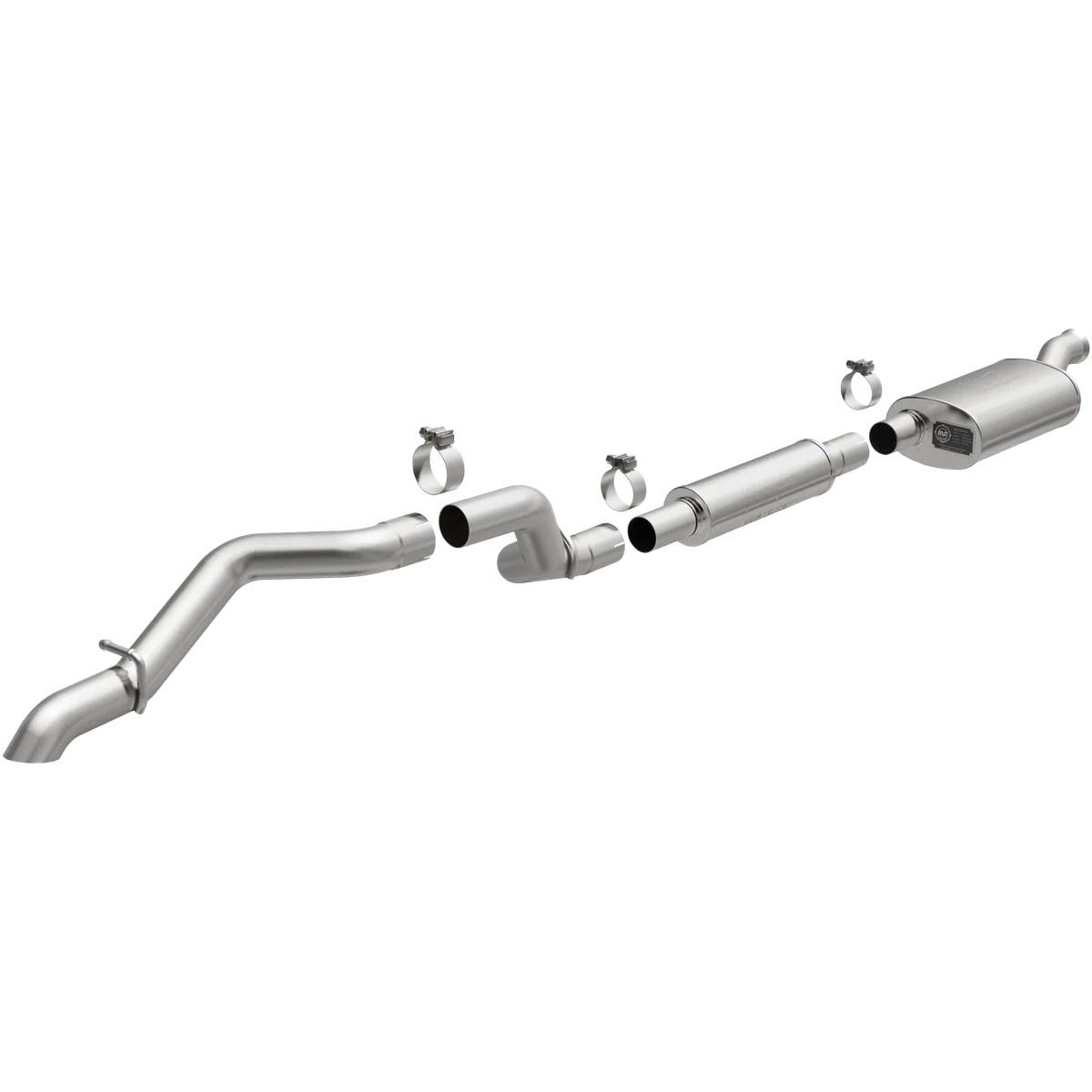

The MagnaFlow® JL Jeep Wrangler Overland Series™ Cat-Back Performance Exhaust System #19592 will inject your Jeep Wrangler JL Unlimited V6 (2018-2026) with MagnaFlow®’s deep signature sound and dyno-proven performance. MagnaFlow® exhaust kit #19592 is weight optimized for improved utility and features a single straight-through muffler with 2.5” mandrel bent main piping that fits closer to the undercarriage of the vehicle compared to the stock configuration. This combined with a no-tip, high clearance driver side rear exit greatly enhances your JL Jeep Wrangler’s ground clearance and departure angles. The exhaust system was designed to be compatible with the most popular bolt-on aftermarket modifications. Each system incorporates MagnaFlow®’s No Drone Technology, which mitigates interior noise by cancelling out the natural droning frequencies produced by your JL Jeep Wrangler at cruising speeds while retaining the character of your engine’s exhaust note. CNC precision robotic manufacturing techniques enable perfect fitment and allow for hassle-free bolt-on installation. MagnaFlow® #19592 is made entirely of durable stainless steel and backed by MagnaFlow®’s limited lifetime construction warranty.

Features:

• High clearance exit
• Dyno proven performance
• No-Drone-Technology allows for a quiet cabin

Specifications:

• TYPE: Cat-Back
• MOUNTING BRACKET INCLUDED: No
• GASKET OR SEAL INCLUDED: No
• INLET TYPE: Clamp-On
• EXHAUST TIP QUANTITY: 0
• MUFFLER TYPE: Straight-Through
• CLAMPS INCLUDED: Yes
• PIPE MATERIAL: Stainless Steel
• CLAMPING TYPE: Round Band
• HANGERS INCLUDED: Yes
• MUFFLER BODY MATERIAL: Stainless Steel
• MUFFLER QUANTITY: 2
• VALVE INCLUDED: No
• EXIT STYLE: Single Straight Driver Side Rear
• MAIN PIPING DIAMETER: 2.5IN
• MUFFLER FINISH: Brushed
• SERIES: Overland
• MUFFLER (CENTER) BODY HEIGHT: 5IN
• MUFFLER (FRONT) BODY LENGTH: 14IN
• MUFFLER (FRONT) BODY WIDTH: 8IN
• MUFFLER (REAR) BODY HEIGHT: 4IN
• MUFFLER (REAR) BODY LENGTH: 14IN
• MUFFLER (REAR) BODY WIDTH: 4IN
• CATALYTIC CONVERTER INCLUDED: No

Hardware Kit:

• 2.5IN. BAND CLAMPS

MAG-19620 (2.0L / 3.6L)

The MagnaFlow® Jeep Wrangler Overland Series™ Axle-Back Performance Exhaust System #19620 brings additional off-roading prowess, dyno-proven performance and a tunable exhaust sound to your 2018-2026 Jeep Wrangler JL equipped with the 2.0L or 3.6L engine option. The high clearance design of this exhaust system is designed to keep clear of any challenging terrain you may come across. #19620’s 2.5” diameter mandrel bent main piping passes through an 18” straight-through oval muffler and NDT (No Drone Technology) tuned chamber before terminating in a high-clearance tucked tailpipe to the rear of the passenger side. No Drone Technology utilizes passive quarter-wave noise cancellation to minimize the unwanted droning noises that can otherwise occur at highway cruising speeds. The entire kit can be tailored to your preferred exhaust tone by changing out which module is attached to the integrated muffler’s accessory port. The included pipe cap, J-pipe and NDT modules can be combined in various ways to mitigate a wide range of droning frequencies, so which sound profile you choose to go with is up to you. Because the integrated overland muffler incorporates NDT technology to begin with, all configurations offer various forms of NDT benefits. Looking to minimize overall drone? Simply connect the NDT module. Prefer a more traditional rendition of that famous MagnaFlow® exhaust tone? All you need to do is cover the accessory port with the included pipe cap. Exhaust kit #19620 utilizes a direct-fit, easy to install design that replaces your OEM exhaust system from near the rear axle on back. This performance exhaust system is made of durable stainless steel backed by MagnaFlow®’s limited lifetime warranty.

Features:

• High clearance exit
• Dyno proven performance
• No-Drone-Technology allows for a quiet cabin

Specifications:

• TYPE: Axle Back
• MOUNTING BRACKET INCLUDED: No
• GASKET OR SEAL INCLUDED: No
• INLET TYPE: Clamp-On
• EXHAUST TIP QUANTITY: 0
• MUFFLER TYPE: Straight-Through;Tuned Chamber
• CLAMPS INCLUDED: Yes
• PIPE MATERIAL: Stainless Steel
• CLAMPING TYPE: Round Band
• HANGERS INCLUDED: Yes
• MUFFLER BODY MATERIAL: Stainless Steel
• MUFFLER QUANTITY: 2
• VALVE INCLUDED: No
• EXIT STYLE: Single Straight Passenger Side Rear
• MAIN PIPING DIAMETER: 2.5IN
• MUFFLER FINISH: Brushed
• SERIES: Overland
• MUFFLER (FRONT) BODY HEIGHT: 4IN
• MUFFLER (FRONT) BODY LENGTH: 14IN
• MUFFLER (FRONT) BODY WIDTH: 4IN
• MUFFLER (REAR) BODY HEIGHT: 5IN
• MUFFLER (REAR) BODY LENGTH: 18IN
• MUFFLER (REAR) BODY WIDTH: 8IN
• MUFFLER (FRONT) TYPE: Tuned Chamber
• MUFFLER (REAR) TYPE: Straight-Through
• CATALYTIC CONVERTER INCLUDED: No

Hardware Kit:

• PIPE CAP
• 2.5IN. BAND CLAMPS
