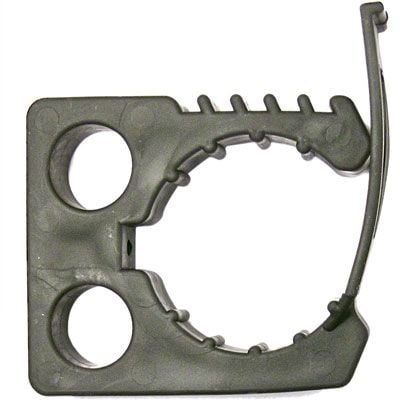

Quick Fist 3" Clamp

Quick Fist 3" Clamp
$10.95
SKU
ETR-50050

End of The Road
  • Holds objects from 2 3/4" to 3 1/4" (70mm to 83mm) in diameter.
  • Each clamp supports a safe working load of 50lbs (23 Kilos).
  • Mounts easily with one 1/4" (6mm) bolt or screw.
  • Mounting area: 4 1/2" x 1 1/4" (113mm x 32mm).
  • Sold Individually
Installation Instructions:
  1. The two protrusions on the base will keep the clamp from turning while in use. Using the template below, drill 3 X 1/4" (6mm) holes. The outer two holes need be about 1/8" (3mm) deep. Use a 1/4" bolt or screw and a washer to mount the QUICK FIST clamp.
  2. The QUICK FIST can be mounted with the strap facing in any direction.
  3. To clamp: Put the Nozzle between the jaws and push the strap to reach the desired tightness.
