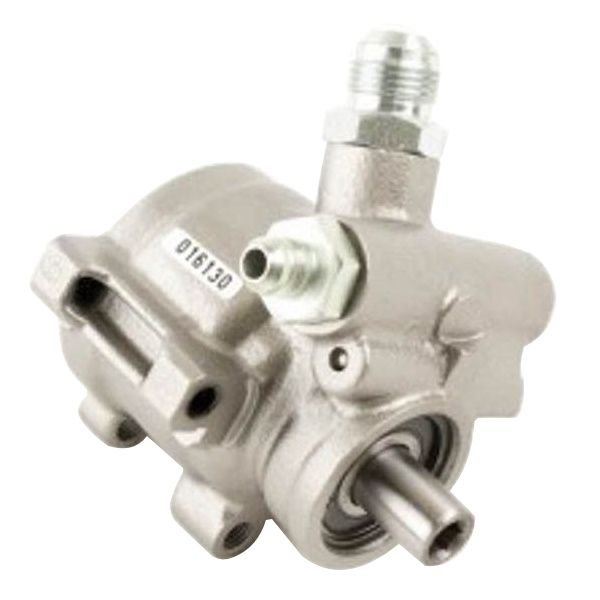

PSC Hi-Flow Type II/TC Power Steering Pump
The heart of any modern power steering system is the pump. PSC offers a full range of new power steering pumps, covering most applications from American Muscle Cars to vintage and newer Jeeps, and most models of Dodge, Ford, and GM Trucks. We even have a solution for those Rock Crawling rigs that operate at very low engine RPMs and are equipped with extensive steering modifications.
A variety of modified pumps are also available to cover severe-duty Full Hydraulic Steering applications, including applications with front and rear steering cylinders.
PSC TC Series Power Steering Pump, ported to produce ~1500 PSI and 2.8 GPM*
*Approximate values determined at 3000 Pump RPM
Requires an application specific SR146 Series Remote Fluid Reservoir Kit
Compatible with most Aftermarket Engine Accessory Drive Kits such as Holley, March Performance, and Billet Specialties
Specifications
- Power Steering Pump Model: Saginaw TC Series/GM Type II
- Pump Flow: High Volume
- Pressure Rating: 1500 PSI
- Pump Finish: Natural Steel
- Mounting Holes: Drilled Thru-Mount
- Reservoir Included: No
- Pulley Included: No
- Pulley Attachment Style: Press Fit
- Fittings Included: Yes
- Inlet Attachment: -10 JIC or -12 JIC
- Inlet Quantity: One (1)
- Inlet Size: 13/16-20
- Outlet Quantity: One (1)
- Outlet Size: 16MM, -6 JIC, or -8 JIC
- Reservoir Style: Remote Fluid Reservoir Required
| Part # | High Pressure Fitting | Low Pressure Fitting |
|---|---|---|
| PSC-SP1200 | 16MM-1.5 Female | -10 JIC Male |
| PSC-SP1200-0-12 | 16MM-1.5 Female | -12 JIC Male |
| PSC-SP1200X | -6 JIC Male | -10 JIC Male |
| PSC-SP1200X-6-12 | -8 JIC Male | -12 JIC Male |
| PSC-SP1200X-8-12 | -8 JIC Male | -12 JIC Male |

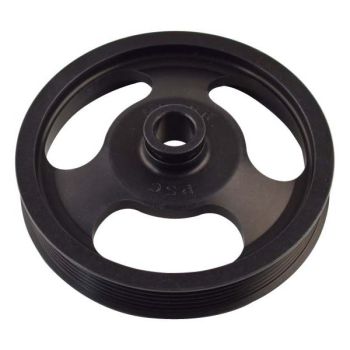

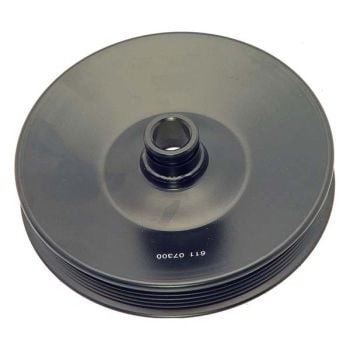

Compatible PSC Pulleys:
- PP240
- PP2402
- PP2404
- PP2409
- PP3508
- PP3608
- PP3608A
