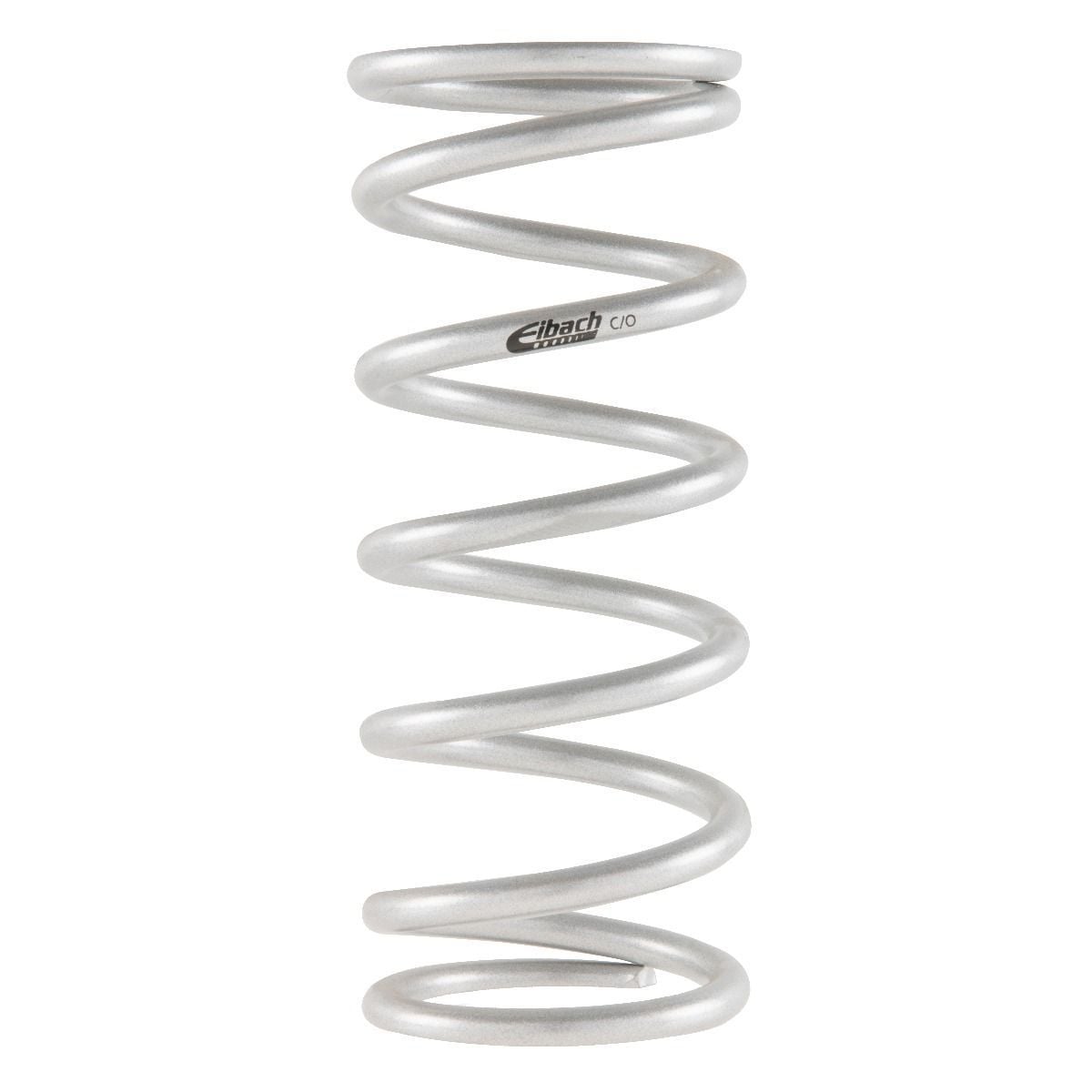

Eibach 10" Long 2.5" ID Coil Springs (Silver)

Ultra-Lightweight for Reduced Unsprung Mass
Maximum Deflection in Combination with Smallest Block Heights
Exceptional Block Resistance and Durability
Precision Tolerances - The Tightest in the Industry
Precision Planparallel and Square End Configurations Under Unloaded and Loaded Conditions to ± Degree
Lowest Side Loads with Load Center Ideally Located Relative to Spring Axis
Highest Linearity and Guaranteed Rate Consistency Within 2% Of Advertised Rate
Each Spring Individually Tested and Rated
Part numbers ending 'S' = Silver Finish

Eligible for Poly's Spring Swap Program
Click to learn more.

From $85.00

Only %1 left

SKU

ERS-1000-250S_PARENT_ITEM

Ultra-Lightweight for Reduced Unsprung Mass
Maximum Deflection in Combination with Smallest Block Heights
Exceptional Block Resistance and Durability
Precision Tolerances - The Tightest in the Industry
Precision Planparallel and Square End Configurations Under Unloaded and Loaded Conditions to ± Degree
Lowest Side Loads with Load Center Ideally Located Relative to Spring Axis
Highest Linearity and Guaranteed Rate Consistency Within 2% Of Advertised Rate
Each Spring Individually Tested and Rated
Part numbers ending 'S' = Silver Finish

Part #	Length inch/mm		Inside Diameter inch/mm		Rate lbs/inch kg/mm N/mm			Block Height inch/mm		Travel inch/mm		Load at Block Height lbs/N
1000.250.0100S	10.00	254	2.50	64	100	1.79	18	3.28	83	6.72	171	671	2,985
1000.250.0150S	10.00	254	2.50	64	150	2.68	26	3.52	89	6.48	165	972	4,324
1000.250.0175S	10.00	254	2.50	64	175	3.13	31	3.32	84	6.68	170	1,169	5,200
1000.250.0200S	10.00	254	2.50	64	200	3.57	35	3.39	86	6.61	168	1,323	5,885
1000.250.0225S	10.00	254	2.50	64	225	4.02	39	3.39	86	6.61	168	1,487	6,614
1000.250.0250S	10.00	254	2.50	64	250	4.46	44	3.72	94	6.28	160	1,569	6,979
1000.250.0275S	10.00	254	2.50	64	275	4.91	48	3.77	96	6.23	158	1,715	7,629
1000.250.0300S	10.00	254	2.50	64	300	5.36	53	3.85	98	6.15	156	1,844	8,202
1000.250.0325S	10.00	254	2.50	64	325	5.80	57	3.94	100	6.06	154	1,971	8,767
1000.250.0350S	10.00	254	2.50	64	350	6.25	61	4.02	102	5.98	152	2,092	9,306
1000.250.0375S	10.00	254	2.50	64	375	6.70	66	4.11	104	5.89	150	2,208	9,822
1000.250.0400S	10.00	254	2.50	64	400	7.14	70	4.24	108	5.76	146	2,302	10,240
1000.250.0450S	10.00	254	2.50	64	450	8.04	79	4.16	106	5.84	148	2,630	11,699
1000.250.0500S	10.00	254	2.50	64	500	8.93	88	4.43	113	5.57	141	2,786	12,393
1000.250.0550S	10.00	254	2.50	64	550	9.82	96	4.43	113	5.57	141	3,061	13,616
1000.250.0600S	10.00	254	2.50	64	600	10.71	105	4.74	120	5.26	134	3,158	14,047
1000.250.0700S	10.00	254	2.50	64	700	12.50	123	4.80	122	5.20	132	3,644	16,209
1000.250.0750S	10.00	254	2.50	64	750	13.39	131	4.85	123	5.15	131	3,860	17,170
1000.250.0800S	10.00	254	2.50	64	800	14.29	140	4.91	125	5.09	129	4,074	18,122
