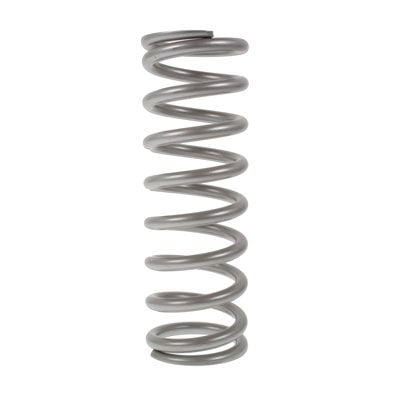

Eibach 12" Long 3.0" ID Coil Springs
Eibach 12" Long 3.0" ID Coil Springs
From $109.00
Only %1 left
SKU
111_PARENT_ITEM
- Ultra-Lightweight for Reduced Unsprung Mass
- Maximum Deflection in Combination with Smallest Block Heights
- Exceptional Block Resistance and Durability
- Precision Tolerances - The Tightest in the Industry
- Precision Planparallel and Square End Configurations Under Unloaded and Loaded Conditions to ± Degree
- Lowest Side Loads with Load Center Ideally Located Relative to Spring Axis
- Highest Linearity and Guaranteed Rate Consistency Within 2% Of Advertised Rate
- Each Spring Individually Tested and Rated
| Length | Diameter | Rate | Block Height | Travel | Block Load | Weight | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part # | inch | mm | inch | mm | lbs/inch | kg/mm | N/mm | inch | mm | inch | mm | lbs | N | lbs | kgs |
| 1200.300.0100S | 12.00 | 305 | 3.00 I.D. | 76 I.D. | 100 | 1.78 | 18 | 2.87 | 73 | 9.13 | 232 | 912 | 4,057 | 2.34 | 1.06 |
| 1200.300.0125S | 12.00 | 305 | 3.00 I.D. | 76 I.D. | 125 | 2.23 | 22 | 3.35 | 85 | 8.65 | 220 | 1,079 | 4,800 | 2.98 | 1.35 |
| 1200.300.0150S | 12.00 | 305 | 3.00 I.D. | 76 I.D. | 150 | 2.68 | 26 | 3.19 | 81 | 8.81 | 224 | 1,319 | 5,867 | 2.89 | 1.31 |
| 1200.300.0175S | 12.00 | 305 | 3.00 I.D. | 76 I.D. | 175 | 3.13 | 31 | 3.74 | 95 | 8.26 | 210 | 1,448 | 6,441 | 3.66 | 1.66 |
| 1200.300.0200S | 12.00 | 305 | 3.00 I.D. | 76 I.D. | 200 | 3.57 | 35 | 3.66 | 93 | 8.34 | 212 | 1,664 | 7,402 | 3.70 | 1.68 |
| 1200.300.0225S | 12.00 | 305 | 3.00 I.D. | 76 I.D. | 225 | 4.02 | 39 | 3.94 | 100 | 8.06 | 205 | 1,815 | 8,073 | 4.17 | 1.89 |
| 1200.300.0250S | 12.00 | 305 | 3.00 I.D. | 76 I.D. | 250 | 4.46 | 44 | 3.94 | 100 | 8.06 | 205 | 2,014 | 8,959 | 4.28 | 1.94 |
| 1200.300.0275S | 12.00 | 305 | 3.00 I.D. | 76 I.D. | 275 | 4.91 | 48 | 4.29 | 109 | 7.71 | 196 | 2,122 | 9,439 | 4.87 | 2.21 |
| 1200.300.0300S | 12.00 | 305 | 3.00 I.D. | 76 I.D. | 300 | 5.36 | 53 | 4.33 | 110 | 7.67 | 195 | 2,305 | 10,253 | 5.03 | 2.28 |
| 1200.300.0325S | 12.00 | 305 | 3.00 I.D. | 76 I.D. | 325 | 5.80 | 57 | 4.37 | 111 | 7.63 | 194 | 2,486 | 11,058 | 5.16 | 2.34 |
| 1200.300.0350S | 12.00 | 305 | 3.00 I.D. | 76 I.D. | 350 | 6.25 | 61 | 4.41 | 112 | 7.59 | 193 | 2,657 | 11,819 | 5.36 | 2.43 |
| 1200.300.0375S | 12.00 | 305 | 3.00 I.D. | 76 I.D. | 375 | 6.70 | 66 | 4.49 | 114 | 7.51 | 191 | 2,815 | 12,522 | 5.58 | 2.53 |
| 1200.300.0400S | 12.00 | 305 | 3.00 I.D. | 76 I.D. | 400 | 7.14 | 70 | 4.57 | 116 | 7.43 | 189 | 2,970 | 13,211 | 5.80 | 2.63 |
| 1200.300.0450S | 12.00 | 305 | 3.00 I.D. | 76 I.D. | 450 | 8.05 | 79 | 4.76 | 121 | 7.24 | 184 | 3,254 | 14,474 | 6.28 | 2.85 |
| 1200.300.0500S | 12.00 | 305 | 3.00 I.D. | 76 I.D. | 500 | 8.94 | 88 | 5.00 | 127 | 7.00 | 178 | 3,503 | 15,582 | 6.86 | 3.11 |
| 1200.300.0600S | 12.00 | 305 | 3.00 I.D. | 76 I.D. | 600 | 10.71 | 105 | 5.24 | 133 | 6.76 | 172 | 4,069 | 18,100 | 7.61 | 3.45 |
| 1200.300.0650S | 12.00 | 305 | 3.00 I.D. | 76 I.D. | 650 | 11.61 | 114 | 5.48 | 139 | 6.52 | 166 | 4,237 | 18,848 | 8.38 | 3.80 |
| 1200.300.0700S | 12.00 | 305 | 3.00 I.D. | 76 I.D. | 700 | 12.50 | 123 | 5.65 | 144 | 6.35 | 161 | 4,443 | 19,764 | 8.82 | 4.00 |
