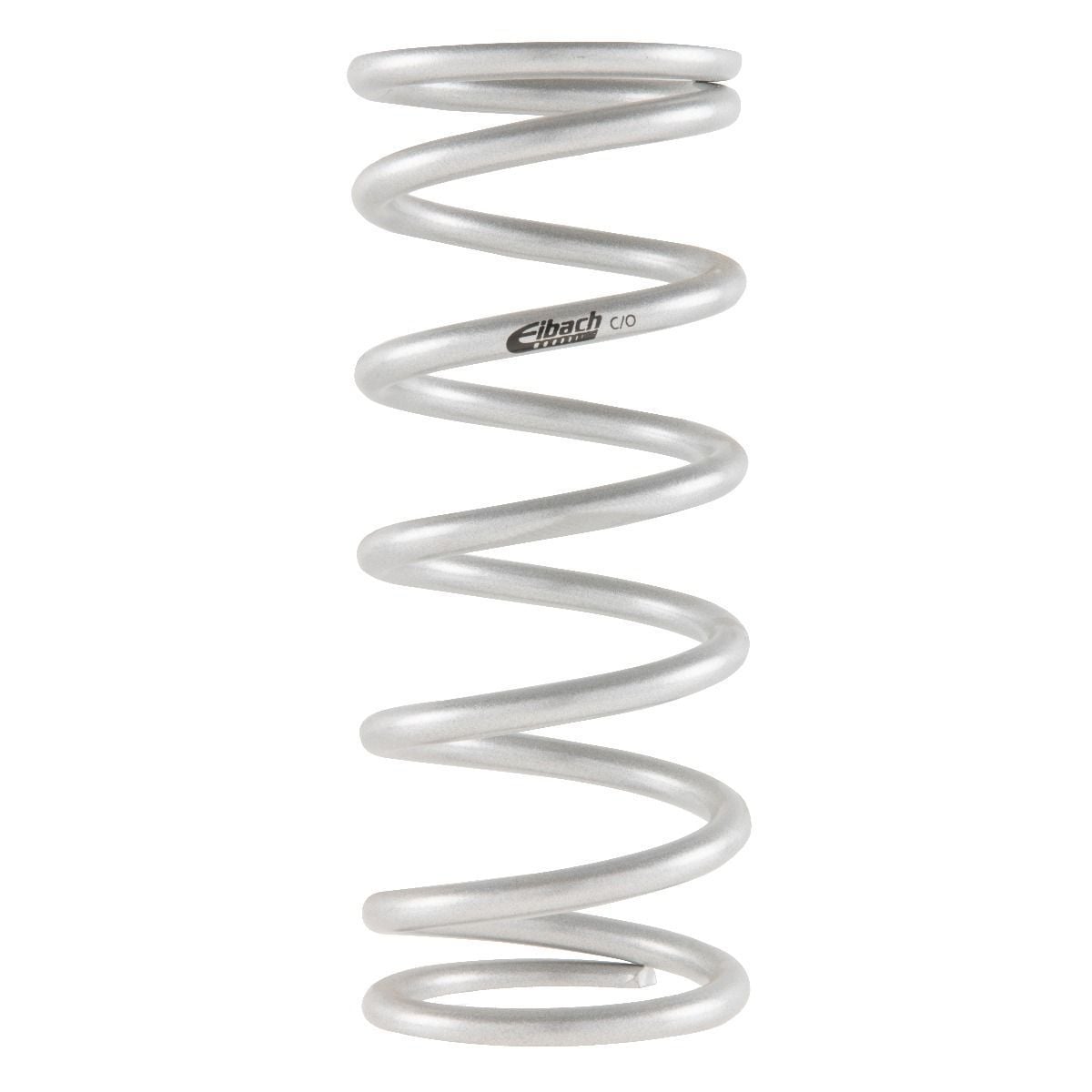

Eibach 14" Long 2.5" ID Coil Springs (Silver)

Ultra-Lightweight for Reduced Unsprung Mass
Maximum Deflection in Combination with Smallest Block Heights
Exceptional Block Resistance and Durability
Precision Tolerances - The Tightest in the Industry
Precision Planparallel and Square End Configurations Under Unloaded and Loaded Conditions to ± Degree
Lowest Side Loads with Load Center Ideally Located Relative to Spring Axis
Highest Linearity and Guaranteed Rate Consistency Within 2% Of Advertised Rate
Each Spring Individually Tested and Rated

Eligible for Poly's Spring Swap Program
Click to learn more.

From $90.00

Only %1 left

SKU

ERS-1400-250S_PARENT_ITEM

Ultra-Lightweight for Reduced Unsprung Mass
Maximum Deflection in Combination with Smallest Block Heights
Exceptional Block Resistance and Durability
Precision Tolerances - The Tightest in the Industry
Precision Planparallel and Square End Configurations Under Unloaded and Loaded Conditions to ± Degree
Lowest Side Loads with Load Center Ideally Located Relative to Spring Axis
Highest Linearity and Guaranteed Rate Consistency Within 2% Of Advertised Rate
Each Spring Individually Tested and Rated

Part #	Length inch/mm		Inside Diameter inch/mm		Rate lbs/inch kg/mm N/mm			Block Height inch/mm		Travel inch/mm		Load at Block Height lbs/N
1400.250.0100S	14.00	356	2.50	64	100	1.79	18	4.39	112	9.61	244	961	4,275
1400.250.0125S	14.00	356	2.50	64	125	2.23	22	5.00	127	9.00	229	1,125	5,004
1400.250.0150S	14.00	356	2.50	64	150	2.68	26	4.72	120	9.28	236	1,391	6,187
1400.250.0175S	14.00	356	2.50	64	175	3.13	31	5.04	128	8.96	228	1,568	6,975
1400.250.0200S	14.00	356	2.50	64	200	3.57	35	4.92	125	9.08	231	1,817	8,082
1400.250.0225S	14.00	356	2.50	64	225	4.02	39	5.32	135	8.68	220	1,953	8,687
1400.250.0250S	14.00	356	2.50	64	250	4.46	44	5.32	135	8.68	220	2,170	9,653
1400.250.0275S	14.00	356	2.50	64	275	4.91	48	5.79	147	8.21	209	2,258	10,044
1400.250.0300S	14.00	356	2.50	64	300	5.36	53	5.81	148	8.19	208	2,458	10,934
1400.250.0350S	14.00	356	2.50	64	350	6.25	61	5.96	151	8.04	204	2,812	12,508
1400.250.0400S	14.00	356	2.50	64	400	7.14	70	6.19	157	7.81	198	3,123	13,892
1400.250.0450S	14.00	356	2.50	64	450	8.04	79	6.48	165	7.52	191	3,385	15,057
1400.250.0500S	14.00	356	2.50	64	500	8.93	88	6.34	161	7.66	195	3,830	17,037
1400.250.0550S	14.00	356	2.50	64	550	9.82	96	6.68	170	7.32	186	4,026	17,908
1400.250.0600S	14.00	356	2.50	64	600	10.71	105	6.64	169	7.36	187	4,413	19,630
1400.250.0650S	14.00	356	2.50	64	650	11.61	114	7.02	178	6.98	177	4,538	20,186
1400.250.0700S	14.00	356	2.50	64	700	12.50	123	7.20	183	6.81	173	4,764	21,192
