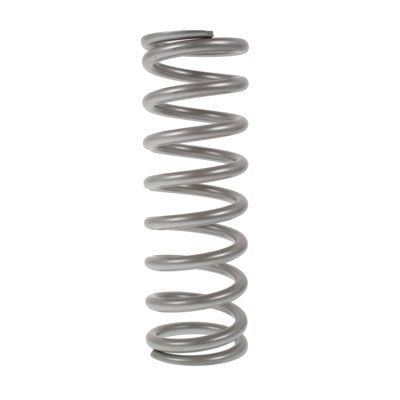

Eibach 14" Long 3.0" ID Coil Springs
Eibach 14" Long 3.0" ID Coil Springs
From $115.00
Only %1 left
SKU
112_PARENT_ITEM
- Ultra-Lightweight for Reduced Unsprung Mass
- Maximum Deflection in Combination with Smallest Block Heights
- Exceptional Block Resistance and Durability
- Precision Tolerances - The Tightest in the Industry
- Precision Planparallel and Square End Configurations Under Unloaded and Loaded Conditions to ± Degree
- Lowest Side Loads with Load Center Ideally Located Relative to Spring Axis
- Highest Linearity and Guaranteed Rate Consistency Within 2% Of Advertised Rate
- Each Spring Individually Tested and Rated
| Part # | Length inch/mm |
Inside Diameter inch/mm |
Rate lbs/inch kg/mm N/mm |
Block Height inch/mm |
Travel inch/mm |
Load at Block Height lbs/N |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1400.300.0100S | 14.00 | 356 | 3.00 | 76 | 100 | 1.79 | 18 | 3.66 | 93 | 10.35 | 263 | 1,035 | 4,605 |
| 1400.300.0125S | 14.00 | 356 | 3.00 | 76 | 125 | 2.23 | 22 | 3.98 | 101 | 10.02 | 255 | 1,254 | 5,578 |
| 1400.300.0150S | 14.00 | 356 | 3.00 | 76 | 150 | 2.68 | 26 | 4.25 | 108 | 9.75 | 248 | 1,464 | 6,512 |
| 1400.300.0175S | 14.00 | 356 | 3.00 | 76 | 175 | 3.13 | 31 | 4.45 | 113 | 9.55 | 243 | 1,673 | 7,442 |
| 1400.300.0200S | 14.00 | 356 | 3.00 | 76 | 200 | 3.57 | 35 | 4.72 | 120 | 9.28 | 236 | 1,855 | 8,251 |
| 1400.300.0225S | 14.00 | 356 | 3.00 | 76 | 225 | 4.02 | 39 | 4.65 | 118 | 9.35 | 237 | 2,103 | 9,355 |
| 1400.300.0250S | 14.00 | 356 | 3.00 | 76 | 250 | 4.46 | 44 | 5.00 | 127 | 9.00 | 229 | 2,251 | 10,013 |
| 1400.300.0275S | 14.00 | 356 | 3.00 | 76 | 275 | 4.91 | 48 | 4.96 | 126 | 9.04 | 230 | 2,484 | 11,049 |
| 1400.300.0300S | 14.00 | 356 | 3.00 | 76 | 300 | 5.36 | 53 | 5.39 | 137 | 8.61 | 219 | 2,581 | 11,481 |
| 1400.300.0325S | 14.00 | 356 | 3.00 | 76 | 325 | 5.80 | 57 | 5.24 | 133 | 8.76 | 223 | 2,843 | 12,646 |
| 1400.300.0350S | 14.00 | 356 | 3.00 | 76 | 350 | 6.25 | 61 | 5.47 | 139 | 8.53 | 217 | 2,990 | 13,300 |
| 1400.300.0400S | 14.00 | 356 | 3.00 | 76 | 400 | 7.14 | 70 | 5.59 | 142 | 8.41 | 214 | 3,362 | 14,955 |
| 1400.300.0450S | 14.00 | 356 | 3.00 | 76 | 450 | 8.04 | 79 | 5.83 | 148 | 8.17 | 208 | 3,682 | 16,378 |
| 1400.300.0500S | 14.00 | 356 | 3.00 | 76 | 500 | 8.93 | 88 | 6.02 | 153 | 7.98 | 203 | 3,979 | 17,699 |
| 1400.300.0550S | 14.00 | 356 | 3.00 | 76 | 550 | 9.82 | 96 | 6.38 | 162 | 7.62 | 194 | 4,200 | 18,682 |
| 1400.300.0600S | 14.00 | 356 | 3.00 | 76 | 600 | 10.71 | 105 | 6.26 | 159 | 7.74 | 197 | 4,638 | 20,631 |
| 1400.300.0650S | 14.00 | 356 | 3.00 | 76 | 650 | 11.61 | 114 | 6.61 | 168 | 7.39 | 188 | 4,813 | 21,409 |
| 1400.300.0700S | 14.00 | 356 | 3.00 | 76 | 700 | 12.50 | 123 | 6.57 | 167 | 7.43 | 189 | 5,198 | 23,121 |
