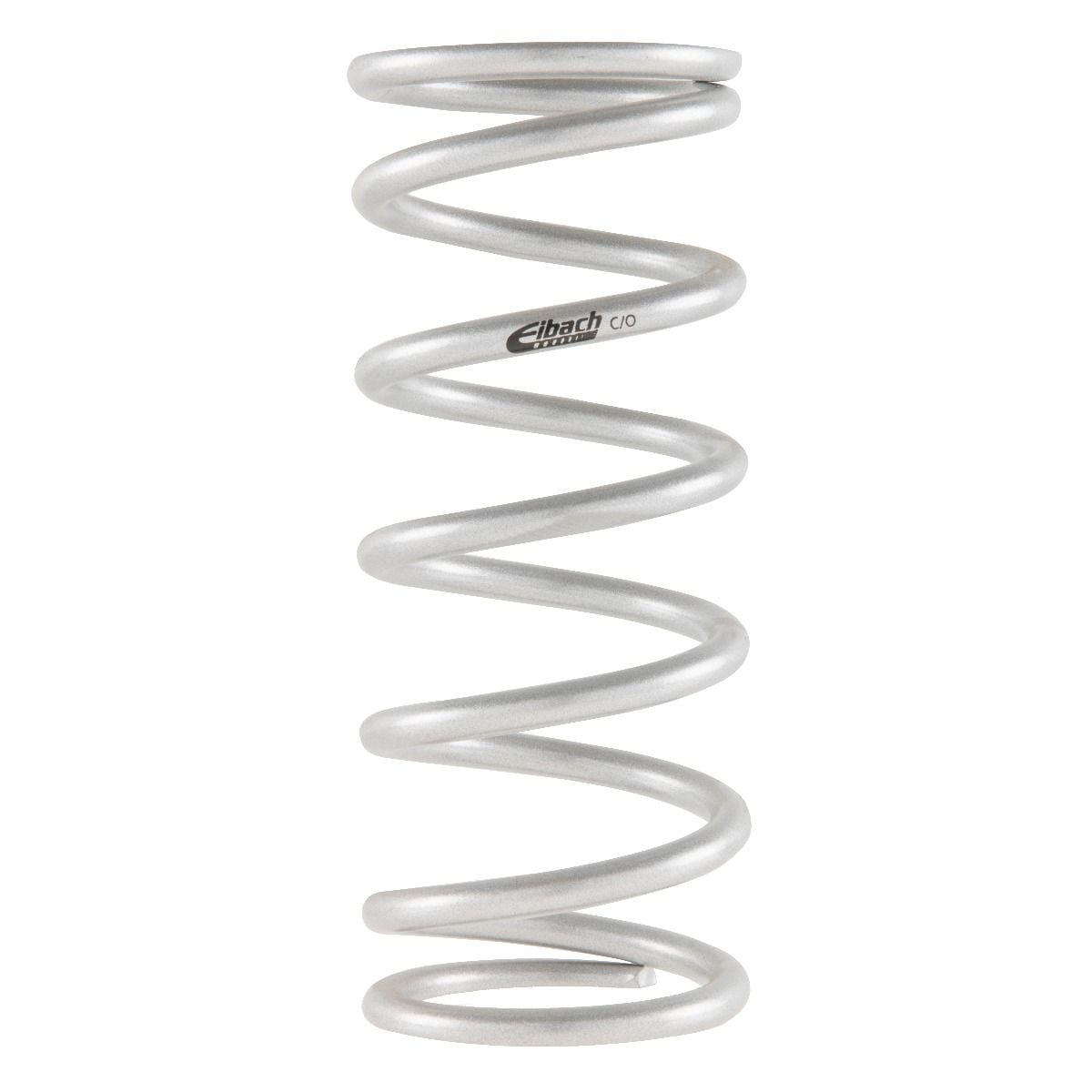

Eibach 18" Long 2.5" ID Coil Springs (Silver)

Ultra-Lightweight for Reduced Unsprung Mass
Maximum Deflection in Combination with Smallest Block Heights
Exceptional Block Resistance and Durability
Precision Tolerances - The Tightest in the Industry
Precision Planparallel and Square End Configurations Under Unloaded and Loaded Conditions to ± Degree
Lowest Side Loads with Load Center Ideally Located Relative to Spring Axis
Highest Linearity and Guaranteed Rate Consistency Within 2% Of Advertised Rate
Each Spring Individually Tested and Rated

Eligible for Poly's Spring Swap Program
Click to learn more.

From $74.00 was $95.00

Only %1 left

SKU

ERS-1800-250_PARENT_ITEM

Ultra-Lightweight for Reduced Unsprung Mass
Maximum Deflection in Combination with Smallest Block Heights
Exceptional Block Resistance and Durability
Precision Tolerances - The Tightest in the Industry
Precision Planparallel and Square End Configurations Under Unloaded and Loaded Conditions to ± Degree
Lowest Side Loads with Load Center Ideally Located Relative to Spring Axis
Highest Linearity and Guaranteed Rate Consistency Within 2% Of Advertised Rate
Each Spring Individually Tested and Rated

	Length		Diameter		Rate			Block Height		Travel		Block Load
Part #	inch	mm	inch	mm	lbs/inch	kg/mm	N/mm	inch	mm	inch	mm	lbs	N

1800.250.0175S	18.00	457	2.50	64	175	3.13	31	7.22	183	10.78	274	1,887	8,392
1800.250.0200S	18.00	457	2.50	64	200	3.58	35	7.01	178	10.99	279	2,200	9,792
1800.250.0225S	18.00	457	2.50	64	225	4.02	39	7.28	185	10.72	272	2,411	10,725
