Synergy Weld-In Forged Tube Adapters
The Synergy Weld-In Forged Tube Adapters are the answer to your fabrication frustrations! Forget about spendy tap sets and annoying jam nuts! We use these exact ends on our highest quality steering components, getting rid of pesky jam nuts and allowing you to use heavy duty rod ends. These are engineered to take on the most aggressive driving, making them an awesome choice for fabricating your own steering or suspension components.
The Synergy Weld-In Forged Tube Adapters are the answer to your fabrication frustrations! Forget about spendy tap sets and annoying jam nuts! We use these exact ends on our highest quality steering components, getting rid of pesky jam nuts and allowing you to use heavy duty rod ends. These are engineered to take on the most aggressive driving, making them an awesome choice for fabricating your own steering or suspension components.
| Part # | Useable Thread Size | Tube ID |
|---|---|---|
| SYN-3621-0701 | 7/8" - 14 UNF-2B Left Hand Thread | 1.11" |
| SYN-3621-0801 | 1" - 14 UNS-2B Left Hand Thread | 0.98" |
| SYN-3621-0802 | 1" - 14 UNS-2B Left Hand Thread | 1.11" |
| SYN-3621-1001 | 1-1/4" - 12 UNF-2B Left Hand Thread | 1.36" |
| SYN-3621-1002 | 1-1/4" - 12 UNF-2B Left Hand ID Thread | 1.48" |
Specifications:

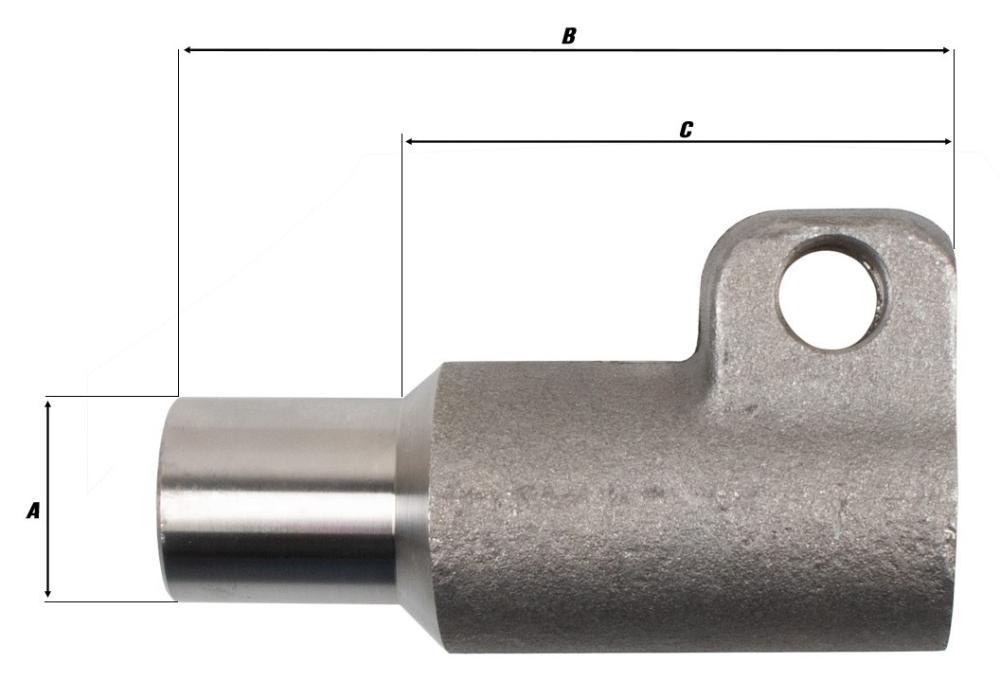

| Part # | A | B | C | Thread Length |
|---|---|---|---|---|
| SYN-3621-0701 | 1.11" | 3.50" | 2.50" | 1.3" |
| SYN-3621-0801 | 0.98" | 4.02" | 2.77" | 1.5" |
| SYN-3621-0802 | 1.11" | 4.13" | 2.88" | 1.88" |
| SYN-3621-1001 | 1.36" | 4.25" | 3.00" | 1.88" |
| SYN-3621-1002 | 1.48" | 4.25" | 3.00" | 1.88" |
Benefits:
- Synergy Pinch Bolt Assembly eliminates the need for jam nuts, preventing suspension or steering components from coming loose
- Tube adapter seals off the link from water or other debris entering the inside of the tube, increasing the longevity of your components
- Ideal for fabricating bent suspension links or adjustable bars with one rod end
Features:
- Tube adapters are forged from high strength SAE AISI 1045 steel
- Versatile weld-on application
- Heavy duty grade 8 hardware

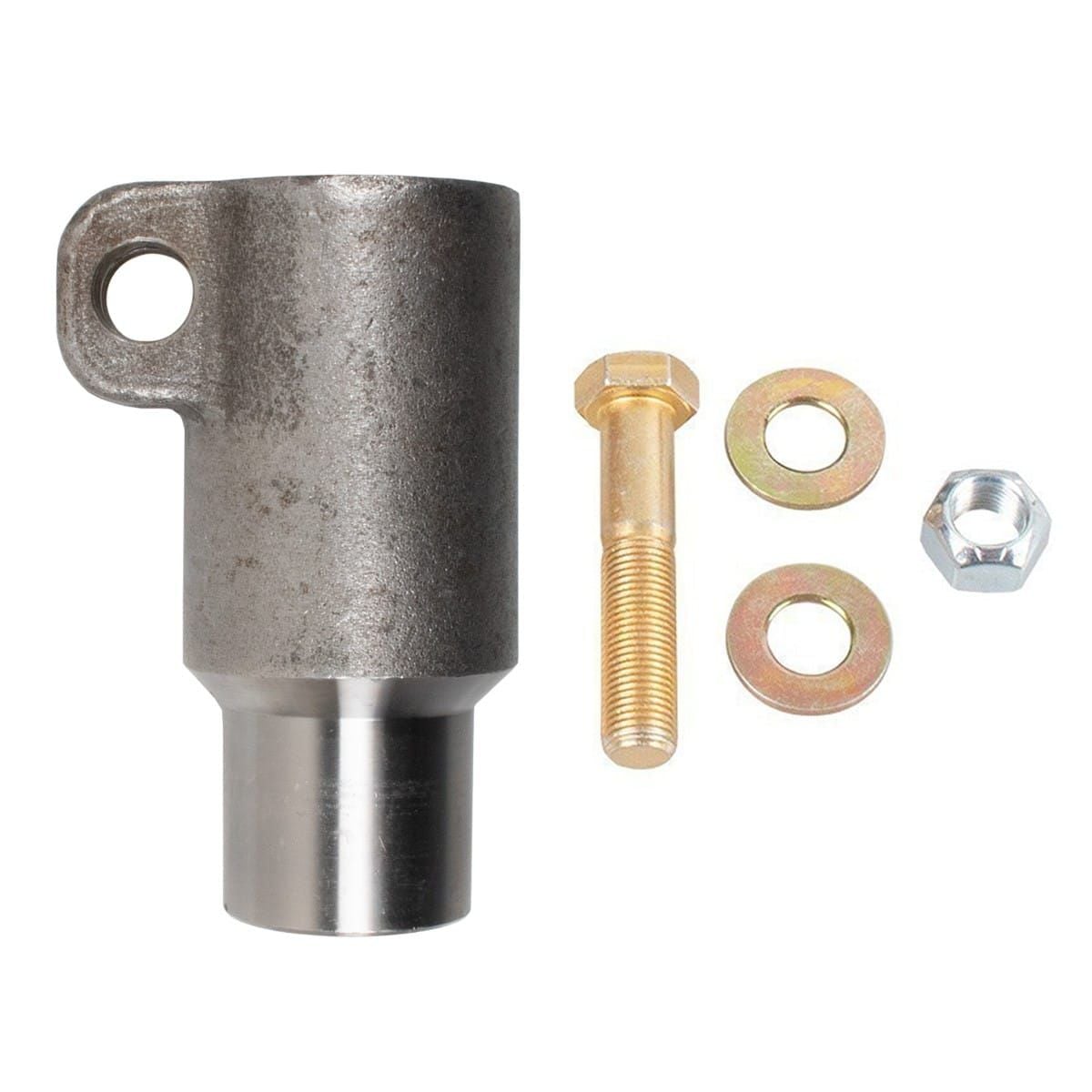

Includes:
- (1) Forged Pinch Bolt Tube Adapter
- (1) Pinch Bolt Hardware Kit
Notes:
- All Synergy Double Adjusters utilize and internal left hand thread compatible with all Synergy left hand thread forged ends with Dual Durometer Bushings, Johnny Joints, or heim joints
- Synergy recommend all welding be done by an experienced welder / fabricator
