Low Range Off-Road Toyota to Chevy Spring Swap Shackle Kit

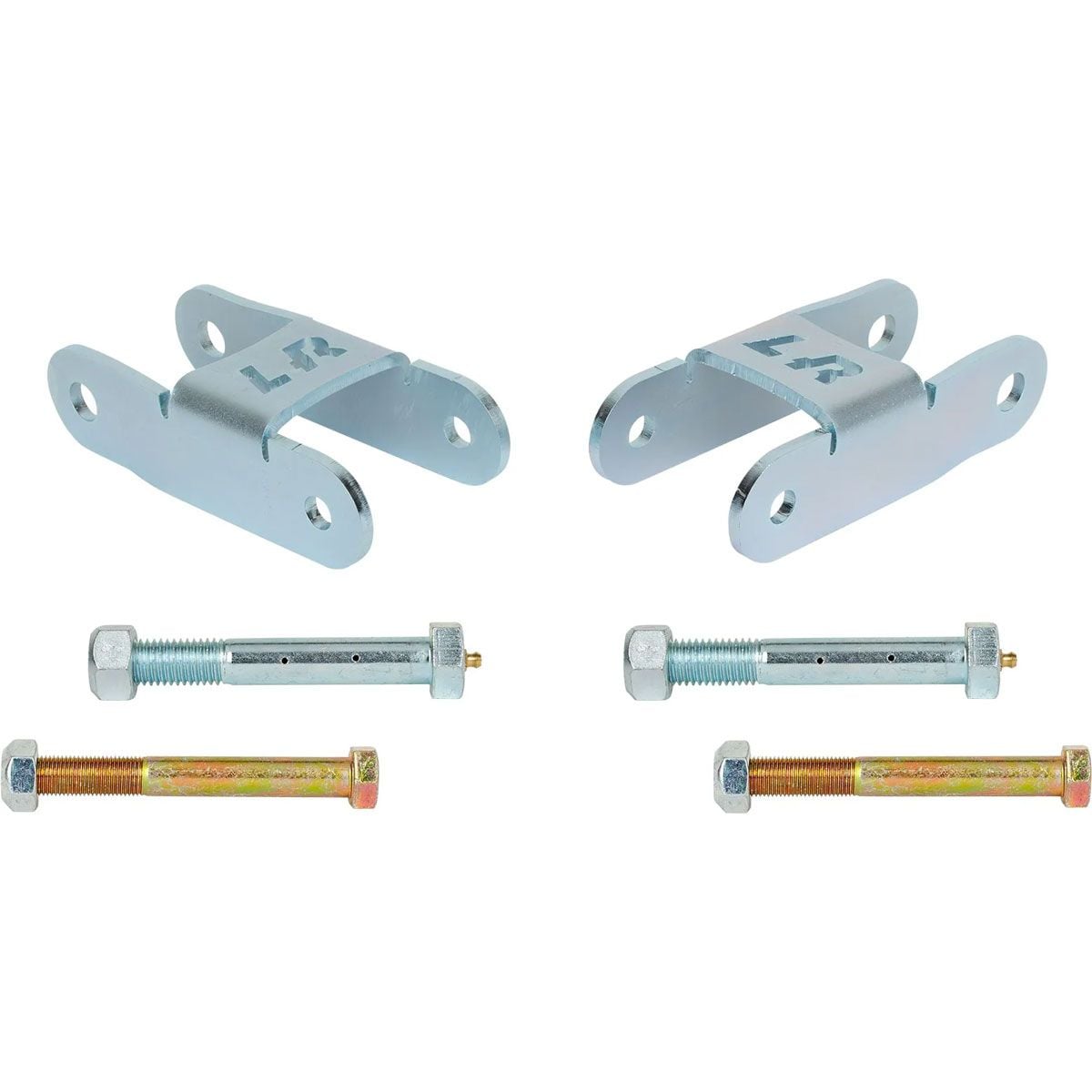

The Low Range Off-Road Toyota to Chevy Spring Shackle Kit is manufactured for Chevy Leaf Spring Swaps on Toyota Trucks. 6" bolt-to-bolt zinc-plated 1/4"-thick ASTM A36 steel shackles have many benefits over the Toyota leaf spring shackles. Top shackle holes are sized for Toyota 18mm bolts and the bottom holes are sized for Chevy 9/16" bolts. This kit includes (2) M18 Greasable bolts & top lock nuts and (2) 9/16" bolts & top lock nuts. These shackles are made to accommodate a full range of aftermarket Chevy leaf springs and have special zinc plating for corrosion resistance.

Note: This kit only includes shackles and hardware. Additional components are required to complete a Chevy Spring Swap. If you are looking for the complete kit, please search for part number TSP-CSK.

• 6" eye-to-eye shackles
• Top shackle holes sized for Toyota 18mm bolts
• Bottom holes sized for Chevy 9/16" bolts
• Includes (2) M18 Greasable bolts & Toplock nuts
• Includes (2) 9/16" bolts & Toplock nuts
• Bushings not included
• Shackles constructed from 1/4"-thick ASTM A36 Steel
• Shackles are compatible with 2.5" wide Chevy 63" springs. These springs should have 3" wide bushings.
