Carli 2.5" / 3.5" Commuter System for 2017-2022 F250/F350 4x4

Utilizing Carli SPEC 2.0″ Diameter, Internal Reservoir shocks, Carli has developed a tune that delivers all-around comfort and ride quality designed for on-road, in town, highway, and towing/hauling.

Fits:

• 2.5" Lift - 2017-19 F250/350 4x4 Diesel
• 3.5" Lift - 2020-2022 F250/350 4x4 Diesel

The mono-tube, internal reservoir, Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shaft, full serviceability & rebuildability and are built with 1-peice bushings in the 6061 billet rod-ends. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. We back these with a 1-year warranty, serviced by Carli. Unlike most of our suspension systems, the Commuter was tuned with 20”, factory wheels on factory Michelin tires given many in the entry level, 3.5” lift market want the most bang for their buck and will continue to run the factory wheels and tires.

The truck will sit 2.5" / 3.5" higher in the front and have more wheel travel thanks to the lighter rate Carli Coil Springs. The Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, we include Caster Shims to tighten the steering and a fabricated, High-Clearance Bump Stop Drop to keep the springs clear from the contacting the factory bump stop. The front Sway Bar Geometry will need to be addressed with your choice of a Sway Bar Drop Bracket (more economical, maintains the factory Sway Bar End Links) or our Extended Sway Bar links – a FAR more robust option. The replacement End Links are the only option compatible with a plow bracket.

The rear can be outfitted with a replacement Full Progressive Spring Pack (reduces capacity to a “light” ¾-ton) or factory leaf-pack modifying Progressive Add-a-Pack (eliminates the factory block and maintains payload capacity; pairs with a rear bump stop drop). This is where the F250 and F350 are a bit different. Since 2008, the main spring packs on these two trucks is different; the F250 has a lighter rate spring pack (2 main leaf springs) than its 350 counterpart (3 main leaf springs). The F250 Add-a-Pack equipped systems are a nice improvement over stock; the F350 with the Add-a-Pack is still very stiff in the rear as the main pack doesn’t move much unless loaded. We recommend the Full Replacement Leaf Spring packs for both trucks but especially the F350 given the super-stiff factory springs. If you own an F250 built with the Tremor or high-capacity tow package, these are equipped with an F350 rear spring and should avoid the add-a-pack, as well. If capacity is a concern, an aftermarket airbag system should be installed to complement the Full Progressive Leaf Springs to restore the F350 capacity. We recommend a system that will allow the airbags to disconnect from the lower mount during suspension cycling to ensure you’re able to take advantage of all your rear suspension travel. The Full Progressive Leaf Spring Pack will shift the axle slightly forward in the wheel well to ensure maximum tire clearance for a 37” M/T at full compression.

This system will not achieve a proper rear-high stance without the installation of the Add-a-Pack or Full Progressive Leaf Spring Pack. Without any rear option, an F250 will sit about rear-low. If a Carli rear spring option is not purchased, one can install the taller 2017-19 Ford 3″ rear block for a leveled stance but rear ride quality will not be optimized (Factory Block PN: HC3Z-5598-A and HC3Z-5598-B)

Wheel and Tire: Factory Wheels SHOULD NOT be run with oversized tires. They’re known to rub the radius arm, sway bar and most concerning – Brake Lines. Factory tires and factory wheels will work without issue but we DO NOT recommend running oversized tires on factory wheels. On our 2.5” Ford Systems, we recommend 17”-18” wheels, no more than 9” wide with 5.5” of backspacing with Carli Fabricated Radius Arms or 5” Backspace with factory arms; 5” will require a bit more trimming. Tires, 37×12.5” will fit with some trimming; 35” will likely fit without trimming. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.

Note: A "Base Kit" must be accompanied by a Sway Bar and Progressive Add-a-Pack option to form a complete system.

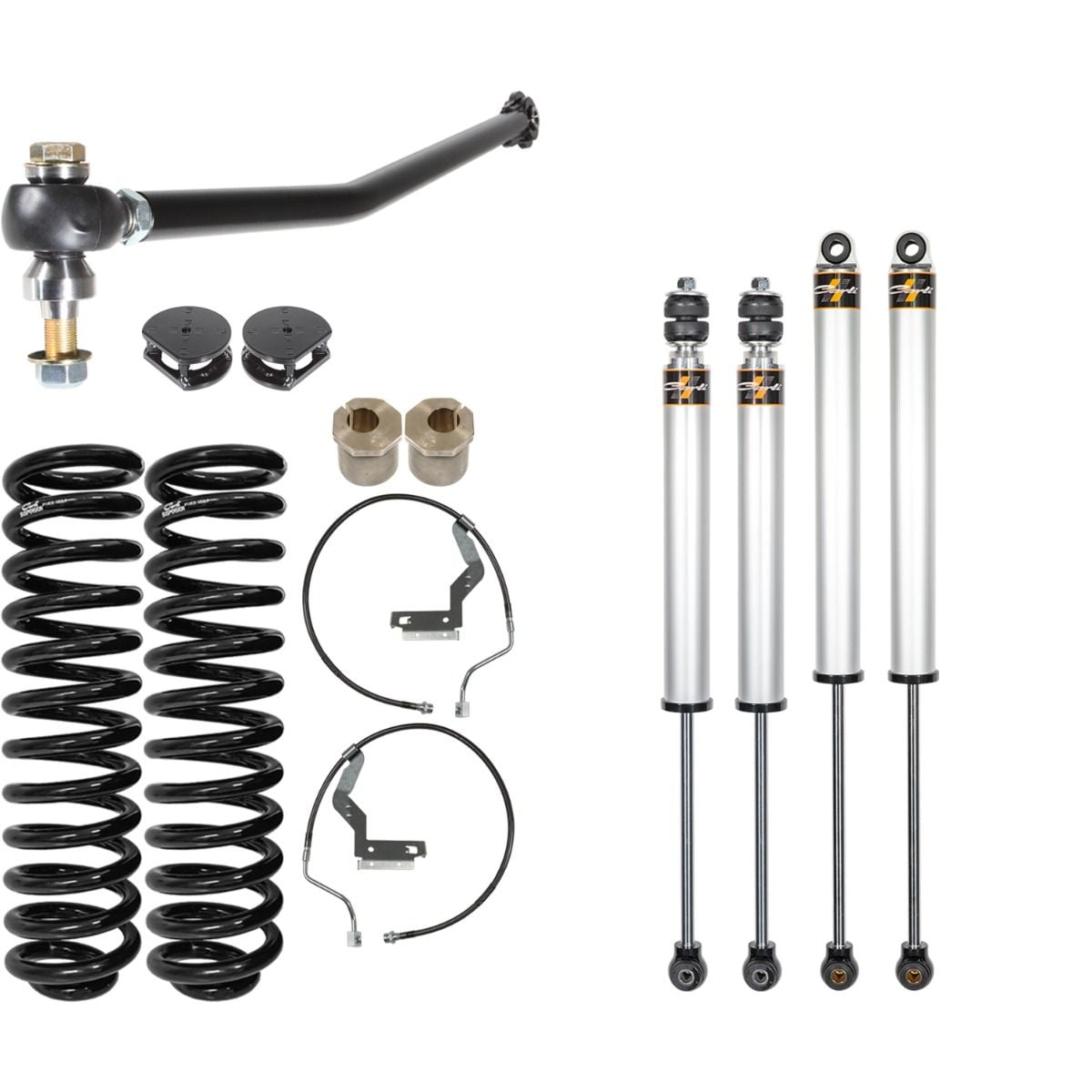

Base Kit:

• (1) CS-FLC-05 - Front Leveling Coils
• (1) AS-FLVLSPKG-CS20IFP-A - Carli SPEC 2.0" IFP Shocks
• (1) CS-FORDBBL-LVL-17-F - Front Brake Lines
• (1) CS-FCASTERSHIM-25 - 2° Caster Shims
• (1) CS-FBDF-25-17 - High Clearance Bump Stop Drops, Front
• (1) CS-FATB-17 - Track Bar

OPTIONS:

Sway Bar Drop Brackets, Leveling - CS-FSBD-LVL-17

• Corrects Sway Bar Geometry in Carli Leveling Suspensions
• Fitment: 2017+ F250/350 4x4

Sway Bar End Links, Leveling - CS-FEL-LVL-17

• Extended Length to accommodate Leveled Trucks
• 17-4 Stainless Steel, Greasable and Fully Rebuildable
• Excellent Articulation
• Only Works on Carli Leveling Lifts
• Fitment: 2017-19 F250/F350 4x4

Torsion Sway Bar - WITH End Links, Leveling - CS-FTSB-LVL-17

• Direct Fitment to Carli Leveling Lifts
• Replaces Immobile Factory Sway Bar with Custom Torsion Bar
• Huge Ride Quality Improvement
• Includes CS-FEL-LVL-17 Drop Brackets and Sway Bar Links
• Fitment: 2017+ Ford F250/F350 4x4

Low Mount Steering Stabilizer - CS-FLMSS-05

• Stainless Steel Body and High Misalignment Pin
• Custom Valved for Larger Tires, Adjustable Nitrogen Pressure
• Hardened Nitride Shafts and Precision Bearings
• Includes Differential Guard and Clamp
• Combines with High-Mount Stabilizer for Opposing Setup
• Fitment: 2005+ F250/350 4x4
• Optimized for Carli 2.5"-5.5" Systems

High Mount Steering Stabilizer - CS-FHMSS-17

• Stainless Steel Body and High Misalignment Pin
• Custom Valved for Larger Tires, Adjustable Nitrogen Pressure
• Hardened Nitride Shafts and Precision Bearings
• Long Lasting Performance and Appearance
• Bolt in Replacement for OEM Stabilizer
• Fitment: 2017+ F250/350 4x4
• Works on leveled and lifted trucks ONLY

Fabricated Radius Arms, 2.5" Lift - CS-FARA-LVL-05

• 1° of Caster correction engineered into arm
• 3/16 Construction, Fully Internal Gusseted with 1/2" Additional Tire Clearance
• Limit Straps Kit Included
• Serviceable 17-4 Stainless Spherical Joint at Frame Connection for longevity and bind free Cycling
• Combines with Radius Arm Drop Brackets for 4.5" Carli Systems
• Fitment: 2005+ F250/350 4x4

Ford 2017 Progressive Add-A-Packs - Leveling - CS-FPAP-LVL-17

• Built in the U.S.A. By Deaver Leaf Spring
• Smooth, Progressive Design
• Supplied with Bump Stop Drops, U-bolts and hardware
• Pairs to Carli Leveling Lifts, provides 1/2"-1" high rear stance
• Eliminates the Factory Block
• Load capacity is maintained, ride quality is improved
• Fitment: 2017+ F250/350 4x4

Ford 2017 Full Progressive Leaf Packs For Leveling Systems - CS-FFSP-LVL-17

• Block eliminating, Full Progressive Spring Pack
• "Light" 3/4-Ton Capacity, Max Bed-load 2,000lbs.
• Includes new U-Bolts and Rear Bump Stop Drops
• Provides a 1", rear high stance on Matching 2.5" Leveling Suspension Systems
• 37" Tire Fitment
• Fitment: 2017+ F250/350 4x4, Diesel 3.5-4.0" Axle Tube

Ford 2017 Full Progressive Leaf Packs For Leveling Systems, Heavy Duty - CS-FFSP-LVL-17-HD

• Block eliminating, Full Progressive Spring Pack
• Heavy Duty Full Replacement Leaf Springs designed for those with constant 1,000lbs in the bed
• Includes new U-Bolts and Rear Bump Stop Drops
• Provides a 1", rear high stance on Matching 2.5" Leveling Suspension Systems
• 37" Tire Fitment
• Fitment: 2017+ F250/350 4x4, 3.5"-4" Axle Tube
