VIAIR Quarter Duty Onboard Air Compressor System (10002)
Quarter Duty Cycle Onboard Air System is a smaller, 120 PSI onboard air system, suitable for many pneumatic needs, including smaller inflation tasks (not including the inflation of automotive tires), air horns and more. The 25% Duty Cycle Onboard Air System will provide enough service time to operate for about 10 minutes of continued use, providing you give the system 30 minutes to cool down afterwards.
Features:
- 12-VOLT
- Complete air source solution
- Includes a light duty compressor & 2 gallon air tank
- Permanent Magnetic Motor
- Sealed design - Moisture & Dust Resistant
- Oil-less Design
- High Performance PTFE Piston Ring
- Stainless Steel Valves
- Anodized Aluminum Alloy Cylinder
- 1 year manufacture warranty

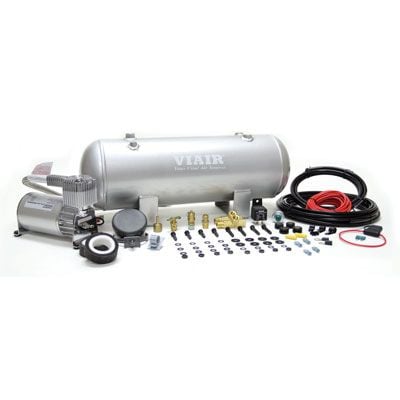

Quarter Duty Cycle Onboard Air System:
- (1) 2 Gallon VIAIR Air Tank
- (1) 275C model VIAIR Air Compressor
- (1) Accessory Airline
- (1) Pressure Switch with Relay (90 PSI on, 120 PSI off)
- (1) 40 amp Relay
- (2) T-Fittings
- (1) 1/4" NPT Compression Fitting
- (1) 1/4" Drain Cock
- (1) 1/4" NPT Male Plug
- (1) 145 PSI Safety Valve
- (1) 20ft. 12 Gauge Wire with Inline Fuse Holder
- (1) Inline Fuse Holder
- (1) Electrical Connections
Specs:
| Voltage: | 12-Volt |
|---|---|
| Duty Cycle: | 25% @ 100 PSI |
| Max Working Pressure: | 150 PSI |
| Max Amp Draw: | 18 Amps |
| Min. Ambient Temp: | -40 degrees F |
| Max. Ambient Temp:: | 158 degrees F |
| Compressor Dimensions: | 6.5" L x 3.5" W x 4.5" H |
| Compressor Net Weight: | 5.1 lbs. |
Duty Cycle Chart:
| Duty Cycle: 100 PSI @ 72F | Max. Run Time / Min. Rest Time |
|---|---|
| 10% Duty Cycle | 3 Min. On / 27 Min. Off |
| 15% Duty Cycle | 6 Min. On / 34 Min. Off |
| 20% Duty Cycle | 8 Min. On / 32 Min. Off |
| 25% Duty Cycle | 10 Min. On / 30 Min. Off |
| 30% Duty Cycle | 13 Min. On / 30 Min. Off |
| 33% Duty Cycle | 15 Min. On / 30 Min. Off |
| 100% Duty Cycle | Continous Duty @ 100 PSI @ 72F |
This compressor has a duty cycle of 25%
Note: Duty cycle refers to the amount of time a compressor can be operated in given time period at 100 PSI, at a standard ambient temperature of 72 degrees F. Duty cycle is commonly expressed in percentage format. The higher the percentage the longer run time.
Fill Rates:
- 2.0 Gallon Tank
0 to 120 PSI - 2 min 22 sec
90 to 120 PSI - 46 sec
| PSI | CFM | A |
|---|---|---|
| 0 | 2.03 | 10 |
| 10 | 1.17 | 12 |
| 20 | 1.11 | 13 |
| 30 | 1.04 | 15 |
| 40 | 1.01 | 15 |
| 50 | 0.97 | 16 |
| 60 | 0.92 | 16 |
| 70 | 0.88 | 17 |
| 80 | 0.83 | 17 |
| 90 | 0.79 | 17 |
| 100 | 0.76 | 18 |
| 110 | 0.72 | 18 |
| 120 | 0.69 | 18 |
| 130 | 0.65 | 18 |
| 120 | 0.62 | 17 |
| 130 | 0.57 | 17 |
PSI = Pounds per squre inch - A measure of air pressure generated by an air compressor.
CFM = Cubic feet per minute - Volume of air produced by the air compressor at a given pressure or PSI.
A = Amps - A measure of the amount of electrical current used.
