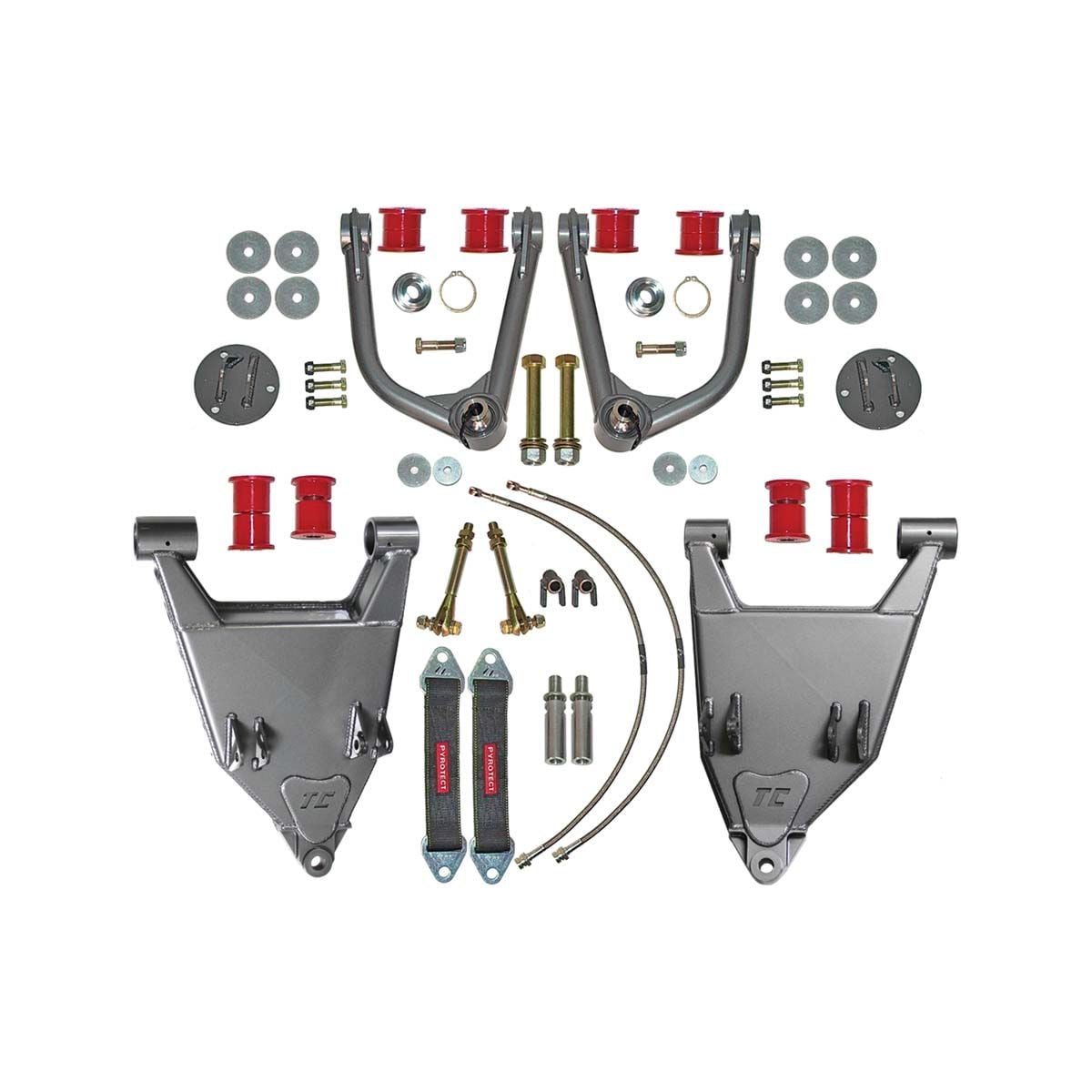

Total Chaos 3.5" Long Travel Kit for 2000-2006 Toyota Tundra

Features:

• 3.5" extended 4130 chromoly tubular upper and lower control arms bolt to factory mounting locations.
• Upper ball joints are replaced with 1" uniballs for maximum travel and component strength.
• TOTAL CHAOS includes 1" I.D. uniballs that feature a heat treated stainless steel ball & heat treated stainless steel race for maximum corrosion resistance and component longevity. These uniball's also features a military grade PTFE woven fabric liner that helps prevent noise.
• Boxed and plated lower control arms are bump stop compatible and designed for dual 2.5" shock capability. (specify model at time of order)
• 2.5" long travel specific coil over shocks bolt into the factory coil bucket location. Extended travel shocks are too short and will not work.
• A secondary external bypass shock can be installed to increase dampening and tune-ability.
• Spring rate options offer the ability to customize your ride for your specific application allowing you to maximize tune ability and performance.
• Adjustable limit strap clevis' are included so that you can properly limit the suspensions droop wheel travel and make necessary adjustments during the life of the limit strap.
• Stainless steel DOT braided brake lines, TC custom 17-4 stainless hi-misalignment spacers and all grade 8 mounting hardware is included.
• TC 4340 custom extended axles reuse factory inner and outer CV's to retain 4wd.
• (axles are sold separately and not included with the kit)
• 2 stage powder coat process includes a durable clear coat to provide a long lasting finish.
• Hand crafted in the U.S.A.
• Fiberglass fenders are required.
