Trail-Gear 4" Extended Brake Line Kit, Jimny JB23/33/43 (DOT Approved)

Trail-Gear's DOT approved Jimny Extended Brake Line Kits are suitable for all Suzuki Jimny JB23/33/43 models with lifts of 3.25" to up to 4.5” [102mm]. These brake lines are constructed from extruded PTFE (Teflon) hose with permanently crimped zinc-plated steel fittings. The brake hose is protected from debris and abrasion by a braided stainless steel wire cover. A clear PVC outer jacket provides additional protection against debris, abrasion, and corrosion.

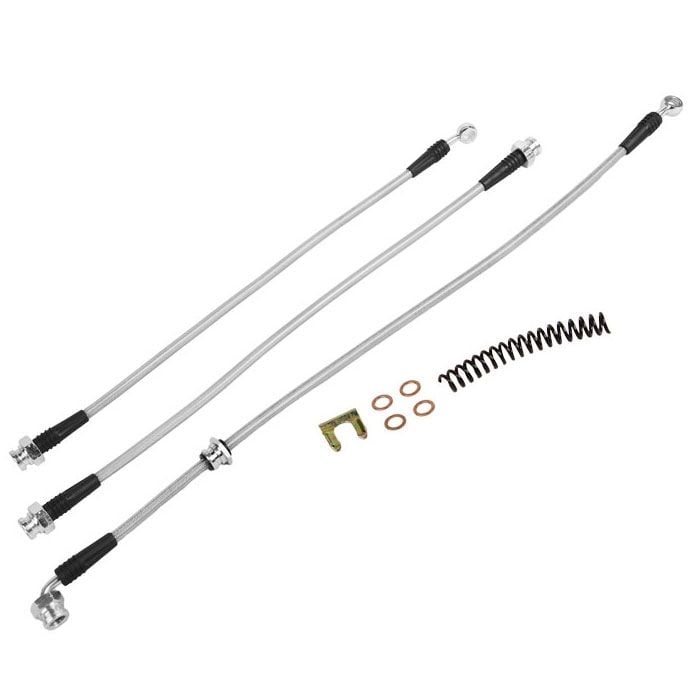

These extended brake lines are a direct fit and exceed all requirements of the Department of Transportation Motor Vehicle Standard MVSS-106. They come in a complete set of two front brake lines and one rear brake line along with four copper sealing washers and a mounting clip. A 4” [102mm] piece of spiral, anti-abrasion wrap is provided to protect the brake line in high abrasion areas.

• DOT approved extended brake lines, suitable for lifts up to 4” [102mm].
• PTFE (Teflon) hose.
• Permanently crimped zinc-plated steel fittings.
• Braided stainless steel wire cover.
• Clear PVC outer jacket.
• Set of (2) front brake lines and (1) rear brake line.
• Provided with (4) copper sealing washers and installation instructions.
• 4” [102mm] piece of spiral anti-abrasion wrap provided to protect brake line in high abrasion areas.
• Exceeds all requirements of the Department of Transportation Motor Vehicle Standard MVSS-106.

• 1998-2015 Suzuki Jimny JB23
• 1998-2005 Suzuki Jimny JB33
• 2000-2015 Suzuki Jimny JB43

Installation Instructions
