Trail-Gear Tacoma Trail-Link Front 3-Link Kits

Continuing with the line of Trail-Link kits, Trail-Gear has developed a Front 3 link kit to work with 1995-2004 Toyota Tacoma's.This kit is affordable, user friendly, and strong. The Panhard is 1.25" x .250" wall DOM material, the other link material is 2" x .250" wall DOM tubing, and the rod ends are 1.25" Creeper Joints. The Panhard bracket on the axle is 3/16" thick and all other brackets are 1/4" steel, formed and welded. Kit includes all necessary link hardware except for upper shock mounts. Upper shock mount location is determined based on the desired ride height and needs of the vehicle. This kit is designed to work with Trail-Gear's True Tacoma width LHD Rock Assault axle P/N 140312-1-KIT and high steer.

Trail-Gear offers four different Tacoma four 3-Link Suspension kits. By offering a selection allows the customer to pick the kit that is best suited and priced for their unique build. All gussets and frame supports are included, so the Tacoma will be much stronger when you finish than it was from the factory. These kits are built by Tacoma owners, for Tacoma owners. If you have any questions you can call our technical support line with confidence that you will be speaking with a fully trained professional, who will assist you with any questions that you may have during your installation.

Fitment:

• 1995-2004 Toyota Tacoma (All Engines)

Specifications:

• The Panhard is 1.25" x .250" wall DOM material
• Link material is 2" x .250" wall DOM tubing
• Rod ends are 1.25" Creeper Joints
• The Panhard bracket on the axle is 3/16"
• Brackets are 1/4" steel, formed and welded
• Kit includes all necessary link hardware except for upper shock mounts

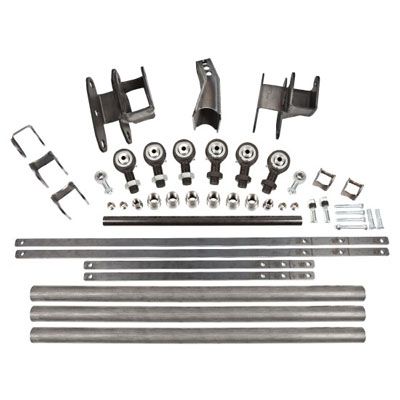

Tacoma Trail-Link Front 3-Link Kit Only, (TGI-301012-1-KIT)

• TG Shock Mount Kit
• Lower Link Mount
• Upper Axle Link Bracket
• Panhard Brackets
• Driver-side Front Frame Bracket
• Passenger-side Front Frame Bracket
• Panhard Bar
• 3x RH & LH Creeper Joints with Bungs
• 2x Rod Ends with Bungs
• Misalignment Spacers
• Shock Stras
• Link
• 3-hole gussets

Tacoma Front 3-Link Kit "A"

Everything in Tacoma Trail-Link Front 3-Link Kit Only plus:

• Front Frame Reinforcement Plates (with IFS Box Mount Kit incorporated)
• Steering Shaft
• Steering Couplers
• Firewall Plate

Tacoma Front 3-Link Kit "B"

Everything in Tacoma Trail-Link Front 3-Link Kit A plus:

• Front Extended Brake Lines
• Fully Loaded Calipers
• Caliper Hard Lines
• Vented Brake Rotors
• Knuckle Service Kit with Wheel Bearings
• Tacoma High Steer Kit
• Fully Loaded Six Shooter Knuckles
• Knuckle Hardware
• 86-88 IFS Steering Box
• Oil Pan Kit (2.7L or 3.4L)
• Power Steering Hose Conversion Kit
• Single T-Case Crossmember

Tacoma Front 3-Link Kit "C"

Everything in Tacoma Trail-Link Front 3-Link Kit B plus:

• Rock Assault Front Axle Housing
• Rock Assault Steering Stops
• Dirty 30s 30 Spline Birfield/Axle Kit
• Assembled 3rd Member
• Your choice of a Detroit or ARB Locker

Note: Compressor is included in Kit C w/ARB Locker.

Note For The Tacoma Trail-Link Front 3-Link Kit A, B, and C: You will need the following components, SOLD SEPARATELY, to complete your build:

• (2) Toyota Solid Axle Spindles TGI-140205-1-KIT
• (2) Brass Spindle Bushings TGI-140105-1-KIT
• (1) Toyota Solid Axle Hubs (Pair) TGI-140448-1-KIT or TGI-140449-1-KIT
• (2) Aisin Locking Hubs TGI-300468-1-KIT or (1) Creeper Flange Kit TGI-140134-1-KIT
• (1) Super Metal Hub Stud Kit TGI-300578-1-KIT
• (1) Super Metal Spindle Stud Kit TGI-300573-1-KIT
• (12) Front Wheel Studs TGI-140392-1-KIT
• (12) Toyota Lug Nuts TGI-140080-1-KIT
• (4) Steering Stop Bolts
• (1) Set of Wheel Spacers may be required with some rims to clear the brake calipers
