Trail-Gear Universal Link Tabs
Trail-Gear Universal Link Tabs
From $8.49 was $9.99
Only %1 left
SKU
TGI-ULT_PARENT_ITEM

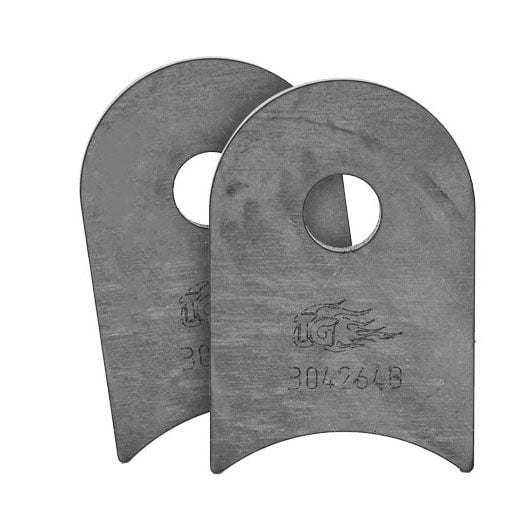

The link tabs are 1/4" thick with 9/16" bolt holes and coped for 1.5", 1.75", 3", and 3.5" OD tubes. They come in small, medium, and large. When a small is used in conjunction with a medium the mounting angle becomes 10° off vertical, if used with a large it becomes 20°. When a medium is used with a large the mounting angle becomes 10°.
Note: Universal Link Tabs are sold as pairs.
| Part # | Mounting Radius | Size |
|---|---|---|
| TGI-304441-KIT | 1.5" | Small |
| TGI-304445-KIT | 1.5" | Medium |
| TGI-304449-KIT | 1.5" | Large |
| TGI-304442-KIT | 1.75" | Small |
| TGI-304446-KIT | 1.75" | Medium |
| TGI-304450-KIT | 1.75" | Large |
| TGI-304443-KIT | 3" | Small |
| TGI-304447-KIT | 3" | Medium |
| TGI-304451-KIT | 3" | Large |
| TGI-304444-KIT | 3.5" | Small |
| TGI-304448-KIT | 3.5" | Medium |
| TGI-304452-KIT | 3.5" | Large |
| TGI-304534-KIT | 90° | Small |
| TGI-304535-KIT | 90° | Medium |
