Van Compass Baja Brackets Rear Shock Mount Reinforcement for 2007+ Sprinter 2500

It's no secret that the Sprinter has some shortcomings when used for serious off road usage. The Baja Bracket Rear Shock mount kit is a solution Van Compass has developed to eliminate one of the glaring shortcomings in the Sprinter's rear suspension setup: a single shear upper shock bolt. Without reinforcement on both sides of the upper shock bushing, this puts a large amount of cyclical stress on the factory shock bolt. Over time, the bolts can stretch or come loose after long miles of washboards, and the bolt eventually yields at the worst possible location: right where it enters the threaded bung on the chassis.

Van Compass's Baja Bracket is a sturdy, precision engineered solution to capture both sides of the upper shock bushing and eliminate the dangerous fulcrum effect that causes a bolt to eventually shear. The part is laser cut and CNC bent from 3/16" formed steel, fixture welded to ensure accuracy, then powder coated for good looks and longevity. A complete hardware kit and slotted holes ensure perfect fit and alignment on all vans, while a machined tubular brace dissipates the load of the shock safely throughout the frame rail.

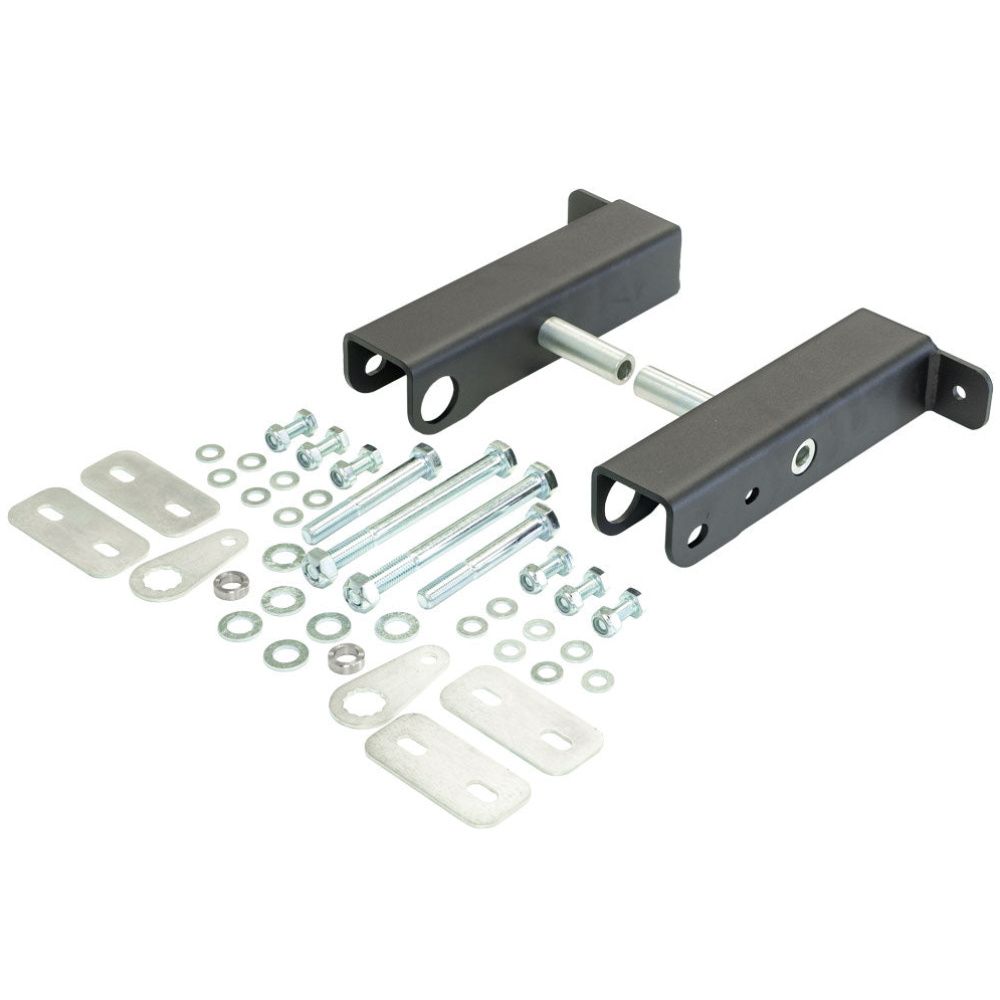

Kit Includes:

• Left and Right Baja Bracket Double Shear shock bracket
• All necessary mounting hardware

Fits: 2007+ Mercedes Sprinter 2500

Installation Instructions
