Van Compass Striker 2 Inch Lift Kit - 2019+ Sprinter AWD 2500

VCO-7219

The Van Compass Striker AWD lift kit creates the clearance needed to fit larger tires and push deeper into back country landscapes with confidence in the increased capability. Through hours of careful development and design, we've created a system that lifts the van with as few compromises to the original design parameters of the vehicle as possible. Using a mix of machined and welded spacers, Van Compass move the front subframe to allow for the CVs, tie rods, and control arms to all cycle in their original geometry range set by Mercedes. At the rear, a taller version of Van Compass Mini Leaf Spring pack is paired with longer sway bar links, shock relocation brackets, and bump stop spacers to ensure that nothing binds, over-extends, or can over-compression on axle articulation. With proper wheel offset and fender trimming, fitment of a 35 x 12.50 tire is possible, for a huge increase in traction and ground clearance.

Fitment:

• 2023+ Sprinter Van AWD

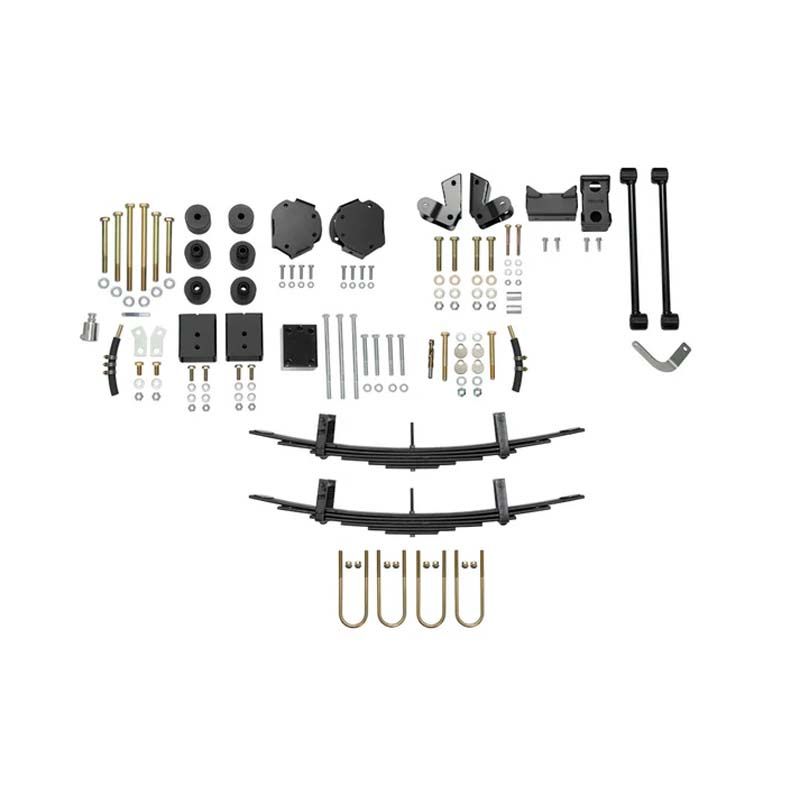

Includes:

• Front 2" strut spacers
• Front 2" subframe drop spacers
• Engine and transmission mount 2" lift spacers
• Front differential re-clocking cams
• CNC Machined 2" steering shaft extension
• Low pressure power steering hose extension
• Front brake line relocation brackets
• 6-leaf Mini Leaf Spring pack
• Extended rear sway bar links
• Rear lower shock relocation brackets
• Rear bump stop drop brackets
• Wind assist or headlight leveling sensor bracket
• All necessary hardware and detailed instructions

Recommended Wheel Size: 17" x 8.5", +45mm offset

Notes:

• 2023+ AWD vans require fitment of a wheel with 6" backspacing or less. For a 17"x8" wheel, this corresponds with a +38mm offset. Wheels with a greater offset like +52mm, or more backspacing like 6.5", will rub the tire on the shock reservoir when the steering is turned.

VCO-7219-OPTI

The Van Compass Striker AWD lift kit creates the clearance needed to fit larger tires and push deeper into back country landscapes with confidence in the increased capability. Through years of careful development and design, Van Compass have  created a system that lifts the van with as few compromises to the original design parameters of the vehicle as possible. This kit is designed specifically for the Sprinter AWD platform.

Using a mix of machined and welded spacers, Van Compass space the front subframe down to allow for the CVs, tie rods, and control arms to all cycle in their original geometry range set by Mercedes. At the rear, Van Compass Opti-Rate rear leaf spring pack is paired with a 2" lift block, longer sway bar links, shock relocation brackets, and bump stop spacers to ensure that nothing binds, over-extends, or can over-compress on axle articulation.

The innovative design of Van Compass Opti-Rate springs allows the end-user to fine tune their spring rate and ride height easily, and is best suited for vans heavy vans in the 9-10,000 lb range and higher, like upgraded Storytellers and Revels, 170 EXT vans with heavy interior build outs, or vans that will carry extra weight behind the rear axle on door carriers, hitch racks and trailers. With proper wheel offset and fender trimming, fitment of a 35 x 12.50 tire is possible, for a huge increase in traction and ground clearance.

Fitment:

• 2013+ SPRINTER 2500 4X4

Includes:

• Front 2" strut spacers
• Front 2" subframe drop spacers
• Engine and transmission mount 2" lift spacers
• Front differential cam bolt kit
• CNC Machined 2" steering shaft extension
• Low pressure power steering hose extension
• Front brake line relocation brackets
• Opti-Rate Rear leaf spring pack
• 2" rear lift block
• Extended rear sway bar links
• Rear lower shock relocation brackets
• Rear bump stop drop brackets
• Wind assist or headlight leveling sensor bracket
• All necessary hardware and detailed instructions

Recommended Wheel Size: 17" x 8.5", +45mm offset

Notes:

•  With this lift kit, tires up to 35" diameter and 12.5" width can fit. Trimming of the fender liner and mud flap is required.

VCO-7219-UP

This grouping of parts is specifically for customers with an existing stage 4.3 kit that want to upgrade to a 6.3 kit. Also works to upgrade Stage 3 to 5 specifications. Van Compass have pair the front and rear lift components, with 2 small leaves to upgrade their existing rear mini pack.

The Striker 4x4 Sprinter 2.0" suspension lift kit provides clearance for larger tires and offers additional ground clearance under the van. Additional traction from larger tires and ground clearance helps to avoid obstacles on the trail to your remote campsite. The Striker kit retains the stock vehicle suspension geometry, payload rating and ride quality. All of the suspension lift kit components are constructed of high quality materials here in the USA, are powder coated for durability and corrosion resistance.

Includes:

• Front 2" strut spacers
• Front 2" subframe drop spacers
• Engine and transmission mount 2" lift spacers
• Front differential cam bolt kit
• CNC Machined 2" steering shaft extension
• Low pressure power steering hose extension
• Front brake line relocation brackets
• 3 short leaves to convert 3-leaf Mini Leaf Spring pack to 6-leaf
• Extended rear sway bar links
• Rear lower shock relocation brackets
• Rear bump stop drop brackets
• Wind assist or headlight leveling sensor bracket
• All necessary hardware and detailed instructions

Fitment:

• 2023+ SPRINTER 2500 AWD

Recommended Wheel Size: 17" x 8.5", +45mm offset

Notes:

• 2023+ AWD vans require fitment of a wheel with 6" backspacing or less. For a 17"x8" wheel, this corresponds with a +38mm offset. Wheels with a greater offset like +52mm, or more backspacing like 6.5", will rub the tire on the shock reservoir when the steering is turned.
