Van Compass Stage 3 TOPO 2.0 System - 2018+ Ford Transit, AWD/RWD, Single Rear Wheel

Improve the ride quality and stance of your Ford Transit RWD with the Stage 3 Topo 2.0 package. This tuned suspension system will dramatically improve your ride quality and Van Compass Topo kit was developed specifically to work around the packaging and front CV shaft constraints presented by the 20218+ AWD Transit platform.

Van Compass Topo 2" lift kit includes a precision engineered 0.75" lift camber correction plate, with a tuned coil spring. By engineering the spring length and rate to Van Compass specifications Van Compass gain 1.25" of lift, with a corresponding increase in compression travel. A 5 leaf mini pack works in conjunction with the factory leaf pack to provide a 10-15% spring rate increase in the rear while lifting the back of the van anywhere from 2.0" to 2.5" depending on vehicle weight. Friction reducing tips on Van Compass leaves ensure a smooth, quiet ride. Included rear shock relocation brackets allow for the low hanging factory brackets to be trimmed, resulting in better overall ground clearance under the axle tube.

Falcon 2.1 Monotube Shocks dramatically improve handling. With superior construction and a larger, more effective damper piston, these shocks will completely change the driving dynamic of your van. A more effective damper reduces leaning in corners, violent swaying, and smooths out jarring impacts.

(Bilstein B6 strut are not included with AWD systems, their added length can cause CV boot failure)

Feartures:

• Aggressive, 2" taller stance allows larger tires to smooth out terrain
• Increased approach, break over and departure angles
• VC tuned Falcon 2.1 Monotube Shocks
• Increased rear spring rate fights sag
• Enhanced cornering stability and reduced wind sway
• More effective control over large and small bumps
• Improved handling feel on rough roads and broken pavement
• Increased bottom out resistance

Intended Use:

• Entry level kit for heavier vans experiencing rear sagging
• Passenger vans that want a more aggressive stance

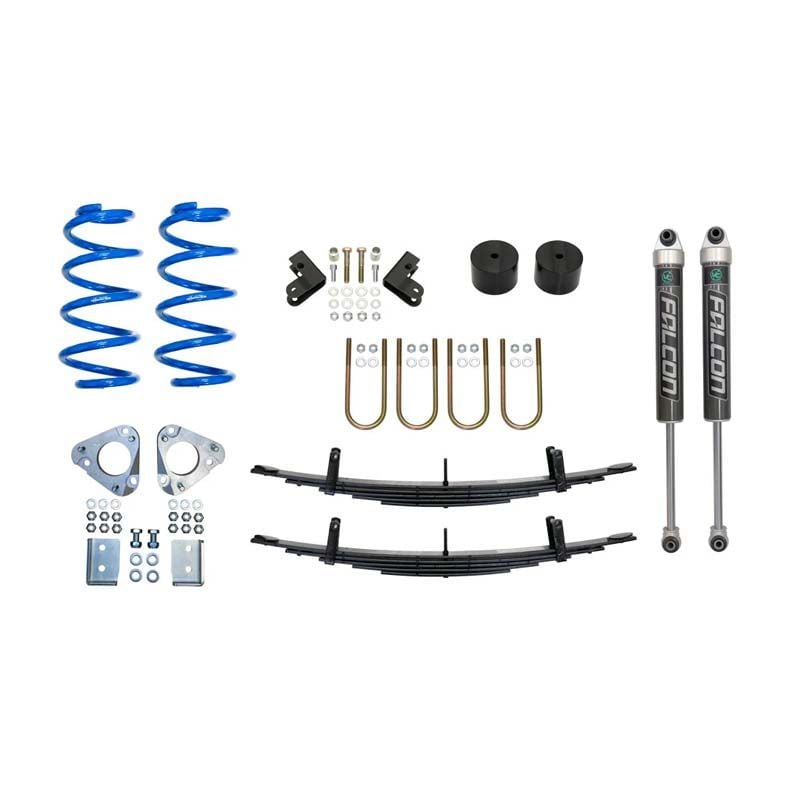

Includes:

• Topo 2.0 Front Lift Kit
• Tuned Falcon 2.1 Monotube Rear Shocks (1 pair)
• Rear 5-Leaf Mini-Spring Pack and Bump Stop Spacers
• High Clearance Rear Shock Brackets

Notes:

• 2015-17 VANS REQUIRE MOTORCRAFT AD1145 UPPER STRUT MOUNT AND DRILLING HOLES TO 10MM
• Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.
• Bilstein B6 strut not recommended for AWD models.
