Van Compass Stage 2.3 - 2015-2022 Sprinter 3500 4X4 - Falcon 3.3 Shocks, Mid/Heavy Tune

Customers looking for maximum handling flexibility from their vans, need look no further than Van Compass' Stage 2.3 system. Whether you are looking for maximum stability in highway travel and treacherous wind conditions, or maximum compliance off pavement, Van Compass are able to minimize side to side sway and balance out jarring impacts using Van Compass' deep knowledge of suspension tuning.

The cornerstone of Van Compass' Stage 2.3 kit is the 4-corner, adjustable Falcon 3.3 Fast Adjust Shocks with their huge range of compression adjustment available at the simple flip of a large, easily accessed Fast Adjust knob. This allows you to quickly adjust from the softest to firmest settings over a significantly larger range than the competition's smaller adjusters. A larger range of adjustment means the shocks are more effective and adaptable to multiple modes of use.

Van Compass' progressive foam Bump Buddy replacement jounce bumpers replace your hard factory rubber bump stops, adding improved spring curve progression, reducing sway, and increasing bottom out resistance without any unnecessary clunking or harshness.

Features:

• VC tuned Falcon 3.3 Adjustable shocks with 10 intuitive firmness settings
• Enhanced cornering stability and reduced wind sway
• More effective control over large and small bumps
• Improved handling feel on rough roads and broken pavement
• Increased bottom out resistance
• 100% bolt on

Intended Use:

• Lightweight adventure vans below GVWR
• Passenger vans

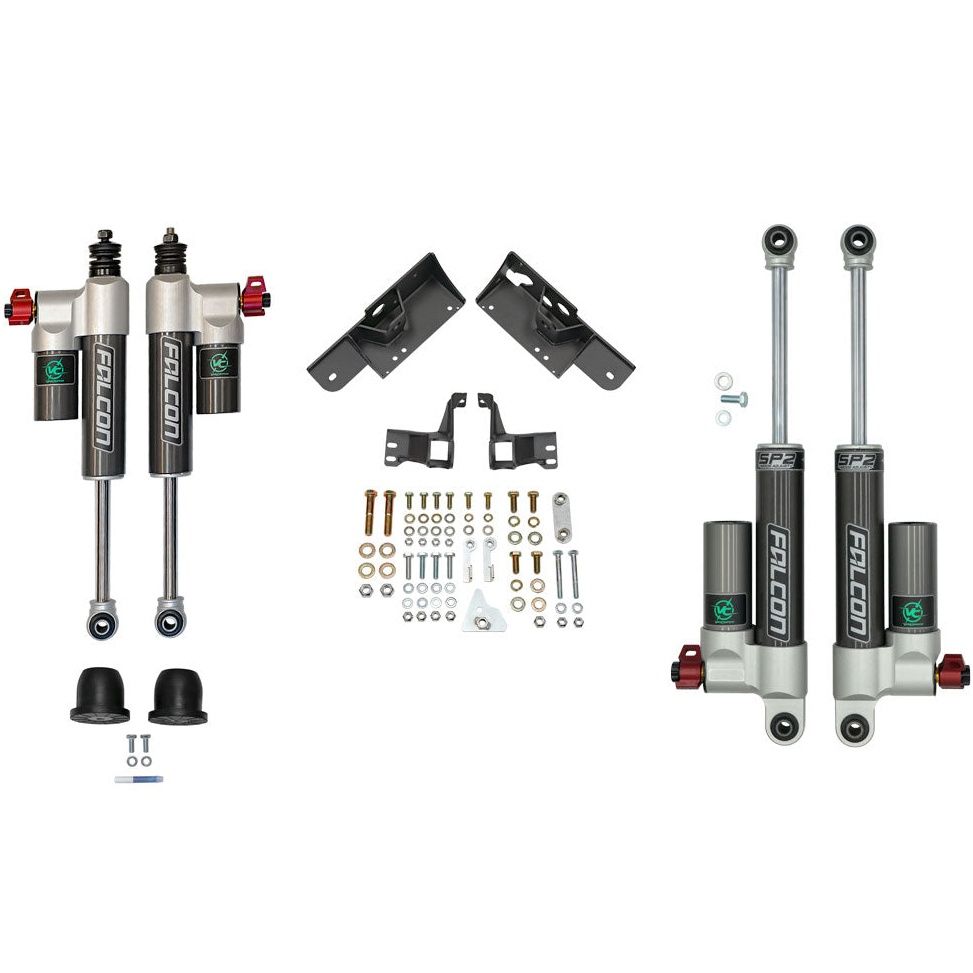

Kit Includes:

• Falcon 3.3 Fast Adjust Front Shocks with Mounting Brackets
• Front Bump Buddy Jounce Stops
• Falcon 3.3 Fast Adjust Rear Shocks with SP2
• Dust boots for all 4 shocks.
• All necessary hardware and instructions for a simple installation

NOTE: Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
NOTE: NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.

2015+ Front Shock installation instructions

Falcon 3.3 DRW Rear Shock Installation Instructions

Sprinter AWD and 4x4 Front Bump Buddies installation instructions

Falcon 3.3 Shock Settings Guide
