Van Compass Stage 1 - 2019-2022 Sprinter 2500/3500 4X4/AWD - Falcon 2.1 Shocks

The Stage 1 system is the core the rest of Van Compass complete systems build up from. This perfect starting point includes a tuned 4 corner shock upgrade and front bump stop upgrade to tighten up your Sprinter's loose handling. Vehicle control and suspension compliance are the two areas of ride quality Van Compass focused on when Van Compass engineered this kit, and the payoff is increased performance over any terrain while also improving handling for unexpected emergencies.

Falcon 2.1 Monotube Shocks, expertly tuned for van users, dramatically improve handling. With superior construction and a larger, more effective damper piston, these shocks will completely change the driving dynamics of your van. A more effective damper reduces leaning in corners, violent swaying, and smooths out jarring impacts. This in turn increases comfort and safety factor, while reducing driver fatigue.

Van Compass progressive foam Bump Buddy replacement jounce bumpers replace your hard factory rubber bump stops, adding improved spring curve progression, reducing sway, and increasing bottom out resistance without any unnecessary clunking or harshness.

Features:

• VC tuned Falcon 2.1 Monotube shocks, front and rear
• Enhanced cornering stability and reduced wind sway
• More effective control over large and small bumps off road
• Improved handling feel on rough roads and broken pavement
• Increased bottom out resistance

Intended Use:

• Lightly built out adventure vans
• Light Class B RV's
• Passenger vans seeking a handling upgrade

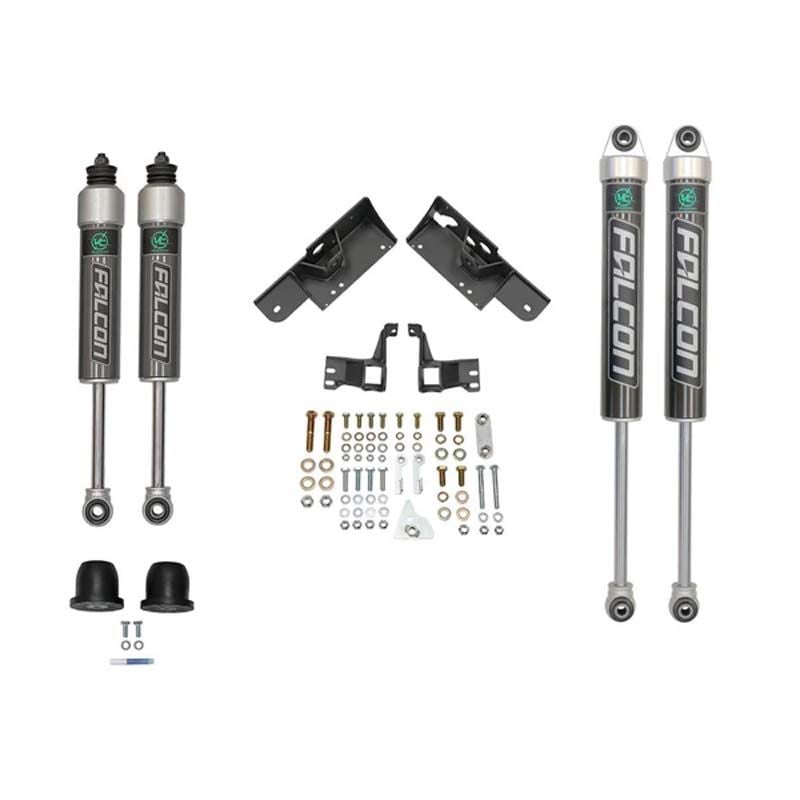

Includes:

• Falcon 2.1 Monotube Front Shocks with Mounting Brackets
• Front Bump Buddies
• Falcon 2.1 Monotube Rear Shocks
• Dust boots for all 4 shocks.
• All necessary hardware and instructions for a simple installation

Notes:

• Recommended Wheel Size: 17" x 8.5", +45mm offset
• Wheels with 6.5" backspacing, or +52mm offset on an 8" wheel, require a minimum 14 mm wheel spacer to prevent tire contact with auxiliary shocks at full steering angle. EX: Black Rhino Warlord, Method 701
• Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
• NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.
