Van Compass TOPO 2.0 Leveling Kit - 2015+ Ford Transit (Single or Dual Rear Wheel)

The Van Compass Topo 2.0 Front Suspension Package delivers a true 2" of lift to your 2015-UP Ford Transit — compatible with RWD and AWD models, with single or dual rear wheel. The front kit combines a 1" lift coil that retains factory spring rate for a plush OE-quality ride with a 3/4" strut spacer featuring built-in camber and caster correction, ensuring your alignment stays within spec while protecting critical components like control arm bushings, tie rod ends, and CV shafts. Front sway bar link extensions are included.

For increased performance, this can be paired with a set of upgraded struts like Van Compass Falcon Monotube Rally Struts, or the venerable Bilstein B6. Adding Van Compass adjustable lower control arms will allow more precise alignment and improves vehicle handling by tightening road feel.

VCO-7089

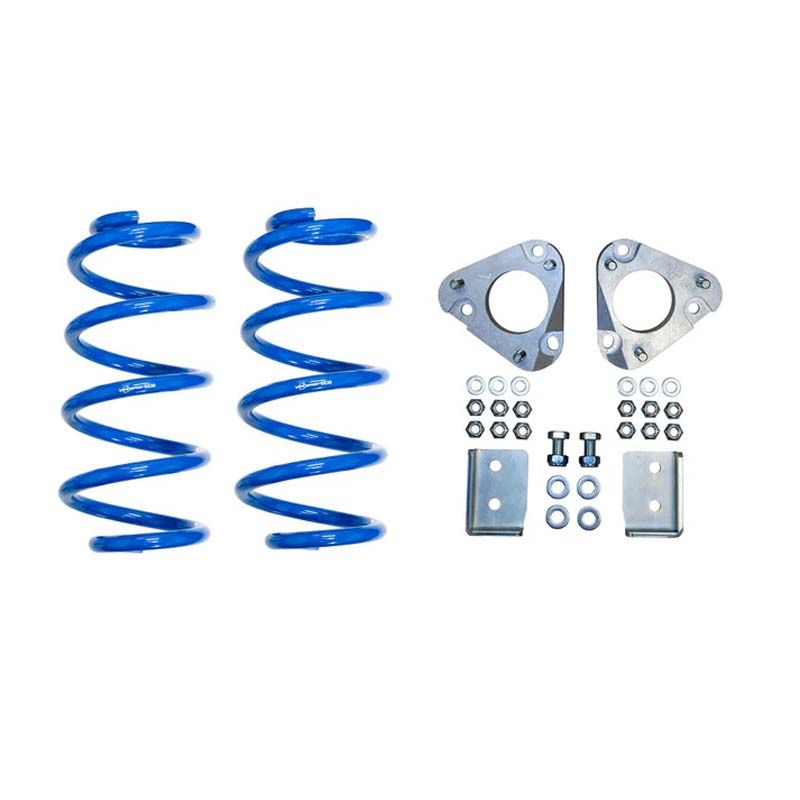

Includes:

• Front 1" lift coil springs
• Front camber correction bracket
• Front sway bar relocation brackets

Notes:

• Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.
• 2015-17 VANS REQUIRE MOTORCRAFT AD1145 UPPER STRUT MOUNT AND DRILLING HOLES TO 10MM
• Bilstein B6 struts are not recommended on AWD vans. The B6 strut is designed with a higher spring seat, and the added lift results in decreased CV boot life. The CV joints will still function fine, but the boots typically experience a shorter service life before needing repair.

VCO-7097

Includes:

• Front 1" lift coil springs
• Front camber correction bracket
• Front sway bar relocation brackets
• 2" rear lift block
• 2" rear bump stop spacer
• All necessary hardware

Notes:

• Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.
• 2015-17 VANS REQUIRE MOTORCRAFT AD1145 UPPER STRUT MOUNT AND DRILLING HOLES TO 10MM
