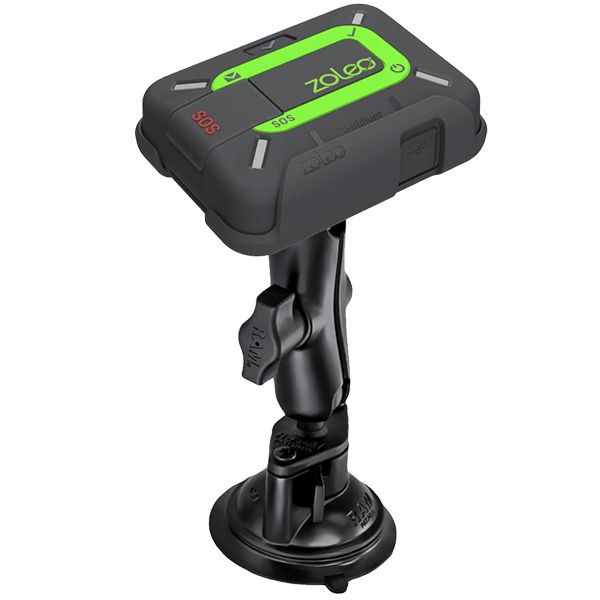

ZOLEO Universal Mount

Ideal for securing the ZOLEO device on the windshield of a vehicle or vessel, or any window, and keeping it charged. This kit includes the complete Cradle Kit plus a USB car charger, RAM® Twist-Lock™ Suction Cup Mount for a strong hold on glass and non-porous plastic surfaces. The double socket arm makes it easy to adjust to the desired look-angle.

• DC car charger
• USB cable
• Cradle
• Strap Infill
• Camera Mount
• Belt Clip
• RAM® Twist-Lock™ Suction Cup mount
• Installation Guide

• RAM Twist-Lock Suction Cup Base with Ball
• Suction Cup Dimension: 8.38 cm (3.3 in) in diameter
• Weight: 118 g (4.16 oz)
• Ball: B Size 2.54 cm (1 in) rubber ball
• RAM Double Socket Arm
• Dimensions: 9.47 cm (3.73 in)
• Weight: 140.6 g (4.96 oz)
• RAM Ball Adapter with ¼"-20 Threaded Stud for Action Cameras
• Dimension: 63.5 mm (2.5 in) in diameter
• Weight: 72.57 g (2.56 oz)
• Stud: ¼"-20 threaded steel stud
• Ball: B Size 2.54 cm (1 in) rubber ball
• DC Car Charger
• Single USB port for use with the included USB to Micro-USB cable
• Input Voltage: 12-24 V
• Output Voltage: 5 V
• Max Current (A): 2.5 A
• USB Cable
• 1.2 m (3.9 ft) (USB to Micro-USB)

• Cradle:The main cradle secures and protects your ZOLEO device and includes a locking tab to enable easy installation or removal of all included clips/inserts.
• Dimension: 74.5 x 95.0 x 27.8 mm (2.93 x 3.74 x 1.09 in)
• Weight: 3.0 g (0.10 oz)
• Colour: Grey
• Belt Clip:Secures your ZOLEO device to be worn on a belt.
• Weight: 2.0 g (0.07 oz)
• Colour: Green
• Strap Infill:Secures your ZOLEO device flat against a backpack or other installations using a strap or tether. Simply slip the strap through the insert.
• Fits straps up to: 25 mm (1 in)
• Weight: 1.0 g (0.03 oz)
• Colour: Green
• Camera Mount:Secures your ZOLEO device to any universal camera mount. Ideal for use with other RAM mounts and other accessories with a camera mount.
• Weight: 1.5 g (0.05 oz)
• Thread Type: ¼"-20 UNC
• Colour: Green
