Van Compass Stage 4.3 Dually System - 2015-2022 Sprinter 3500 4X4, Falcon 3.3 Mid/Heavy Tune, Opti-Rate

It's the best seller for a reason. With everything needed to properly correct the handling problems heavy Sprinters can experience, Van Compass 4.3 kit is the go-to choice for many owners. Whether you are looking for maximum stability in highway travel and treacherous wind conditions, or maximum compliance off pavement, we're able to minimize side to side sway and balance out jarring impacts using Van Compass deep knowledge of suspension tuning.

The cornerstone of Van Compass Stage 4.3 kit is the 4-corner, adjustable Falcon 3.3 Fast Adjust Shocks with their huge range of compression adjustment available at the simple flip of a large, easily accessed Fast Adjust knob. This allows you to quickly adjust from the softest to firmest settings over a significantly larger range than the competition's smaller adjusters. A larger range of adjustment means the shocks are more effective and adaptable to multiple modes of use.

The Opti-Rate leaf spring pack offers flexibility for different van weights, restores lost ride height and corrects sag. Typically, 1.25" of rear lift is seen, resulting in a nicely leveled stance.

Van Compass progressive foam Bump Buddy replacement jounce bumpers replace your hard factory rubber bump stops, adding improved spring curve progression, reducing sway, and increasing bottom out resistance without any unnecessary clunking or harshness.

Features:

• VC tuned Falcon 3.3 Adjustable shocks with 10 intuitive firmness settings
• Restores lost ride height and reduces sagging
• Enhanced cornering stability and reduced wind sway
• More effective control over large and small bumps
• Improved handling feel on rough roads and broken pavement
• Increased bottom out resistance
• 100% bolt on

Intended Use:

• Adventure and conversion vans near or over GVWR
• Class B RVs
• Heavy Passenger vans carrying loads

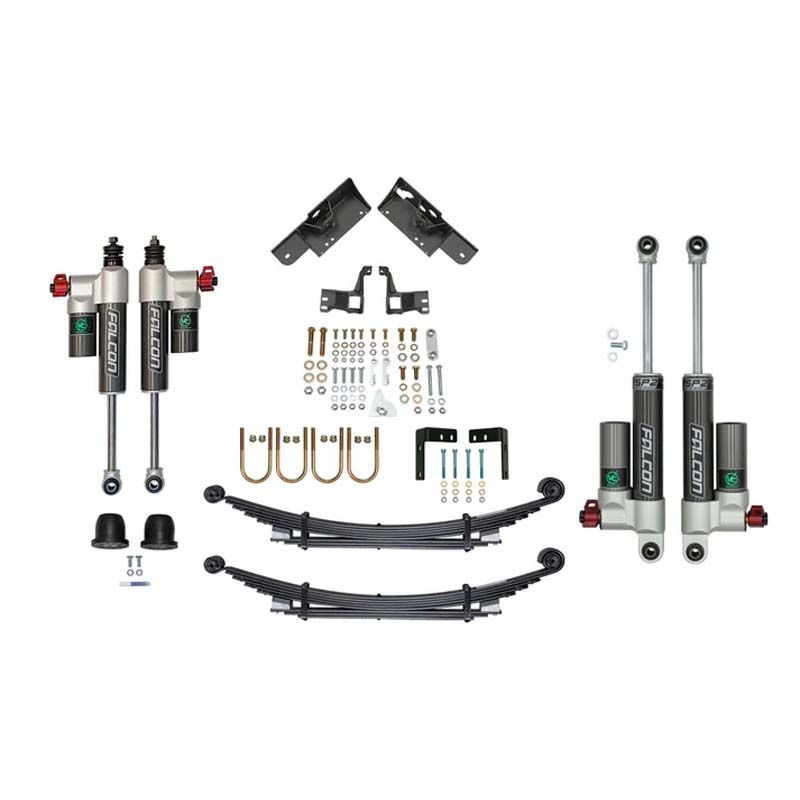

Includes:

• Falcon 3.3 Fast Adjust Front Shocks with Mounting Brackets
• Front Bump Buddies
• Falcon 3.3 Fast Adjust Rear Shocks with SP2
• Opti-Rate Full Replacement Rear Leaf Spring System
• Dust boots for all 4 shocks.
• All necessary hardware and instructions for a simple installation

Notes:

• Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
• NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.
